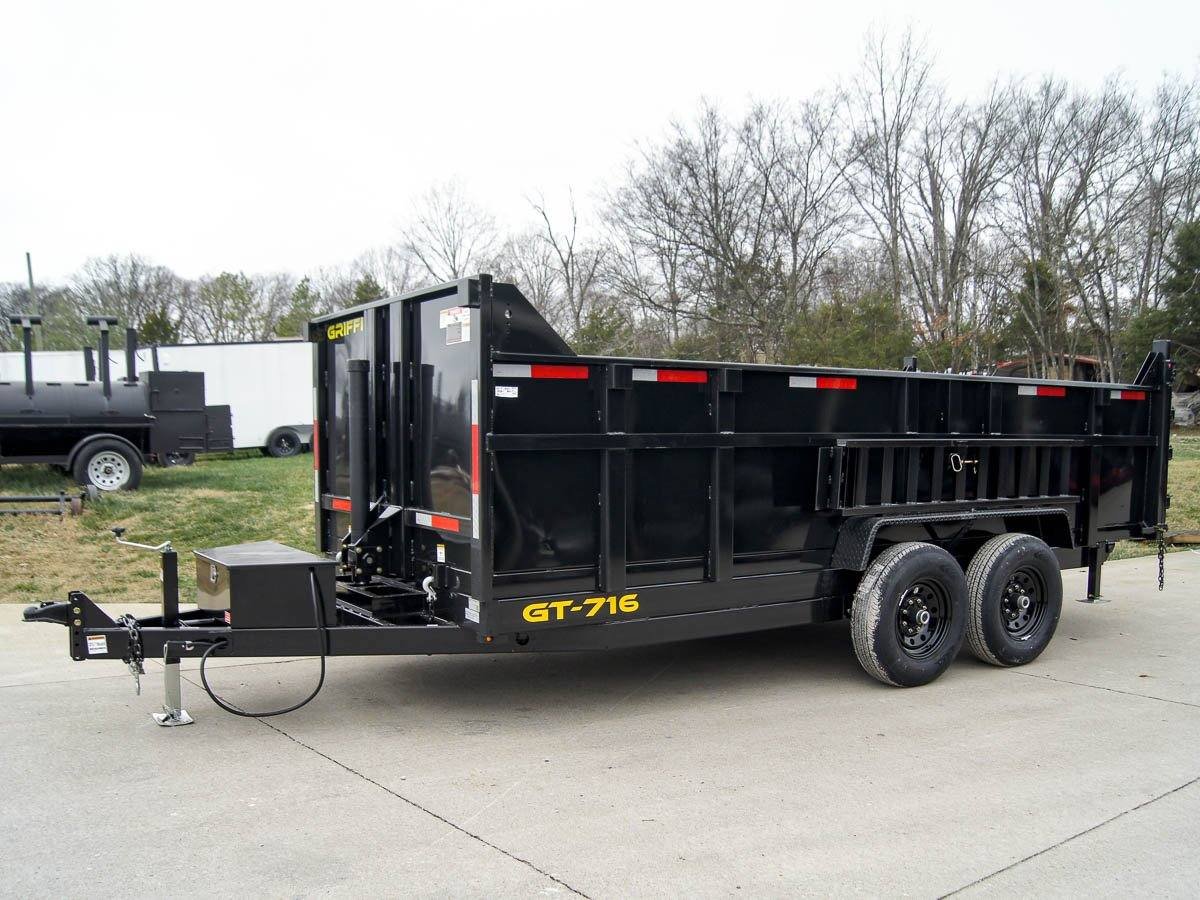

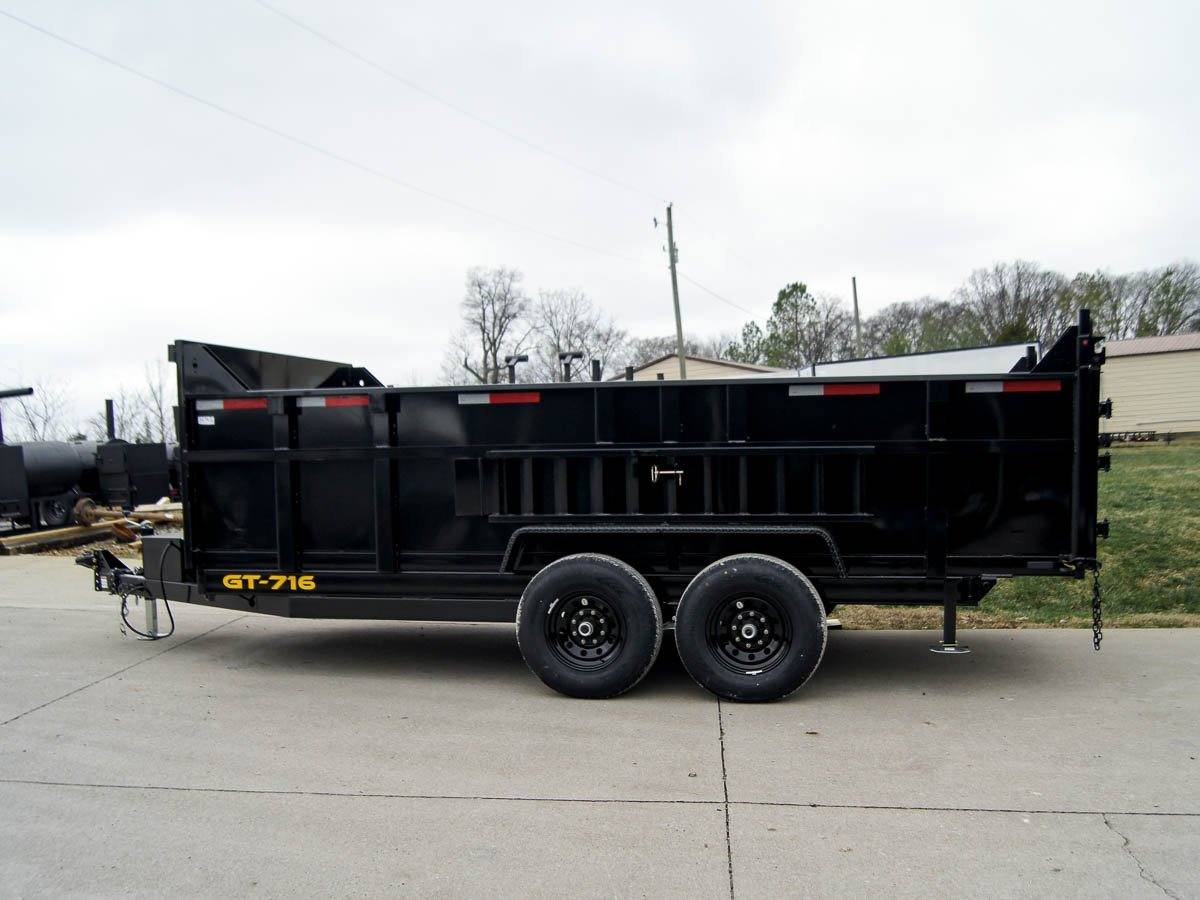

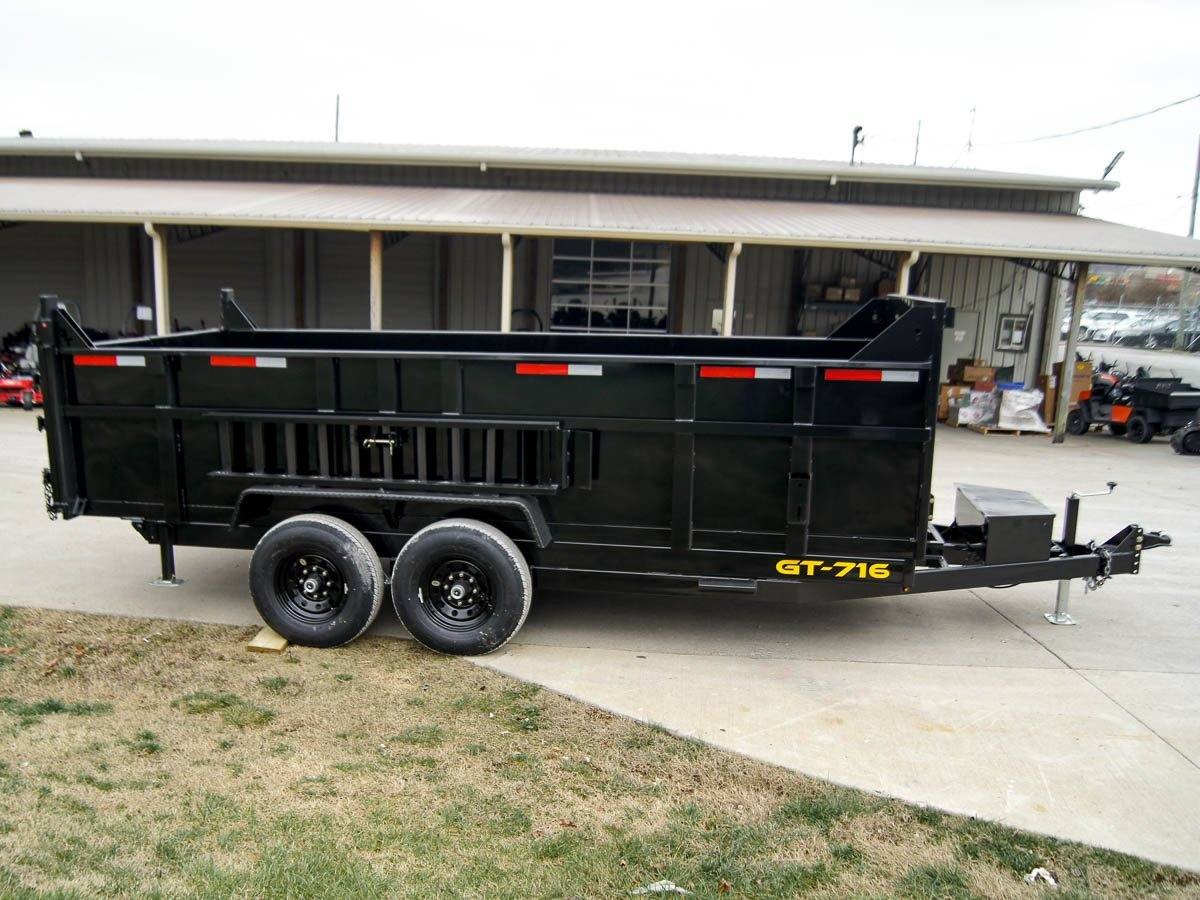

7×16 Telescopic Dump Trailer with 3ft Sides Powder Coated (2) 7K Axles GVWR 14k
Engineered for the high-intensity ‘abuse’ of bulk material transport and demolition debris removal, this 7′ x 16′ Telescopic Dump Trailer is a high-integrity mechanical handshake between extreme lifting power and structural durability. Featuring a front-mount telescopic cylinder, this trailer acts as a hydraulic force multiplier, providing the ‘Max. Pressure’ required to achieve a steeper dump angle than traditional scissor hoists. With 3-foot high sides and a heavy-duty 14,000 lb. GVWR, it is a definitive tool for contractors needing a high-velocity ‘output’ for gravel, dirt, or construction waste.
Features:
-
Spacious 7×16 Dump Bed – A full 16-ft deck with 36″ tall sides and 82.5″ width provides generous room for hauling debris, aggregates, equipment, and bulk materials.
-
Low 29″ Floor Height – Designed for easy loading and unloading whether using wheelbarrows, machinery, or manual labor.
-

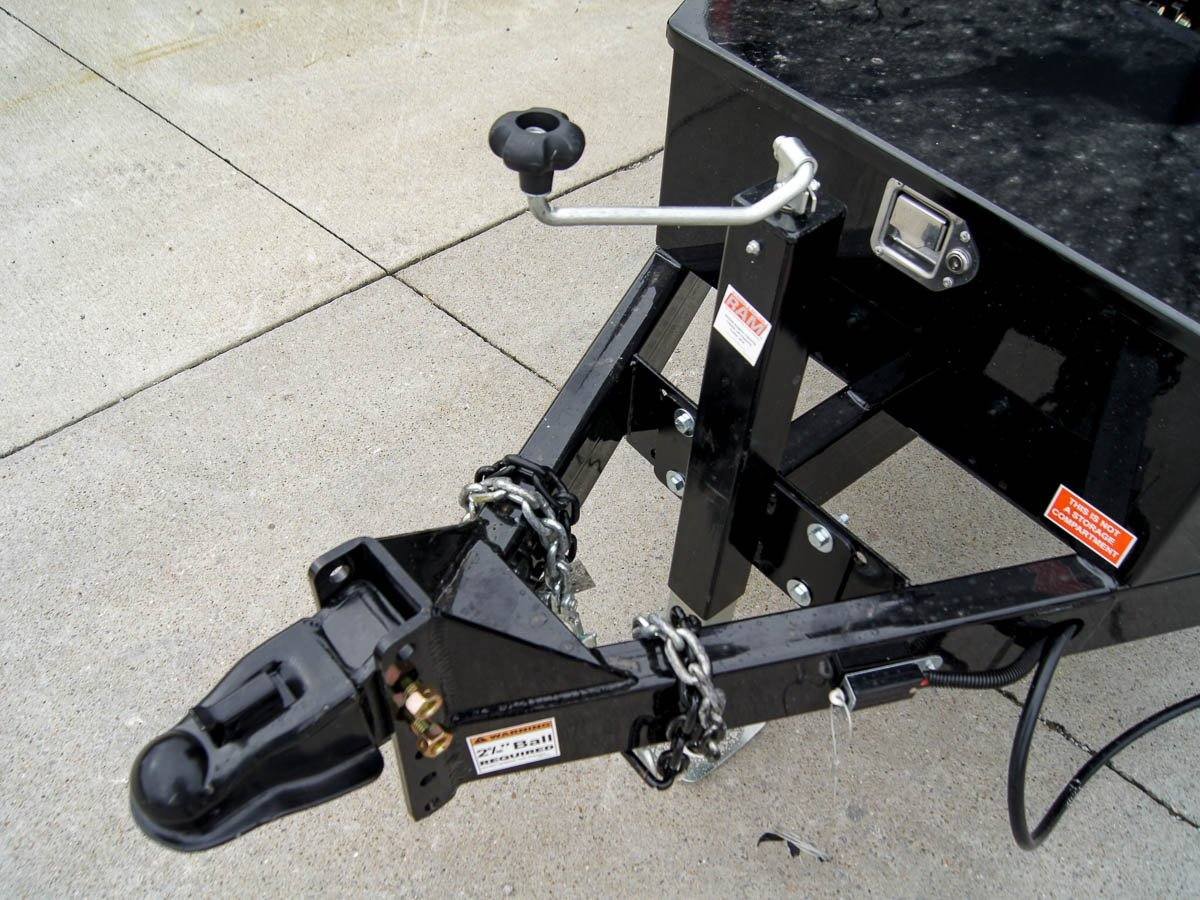

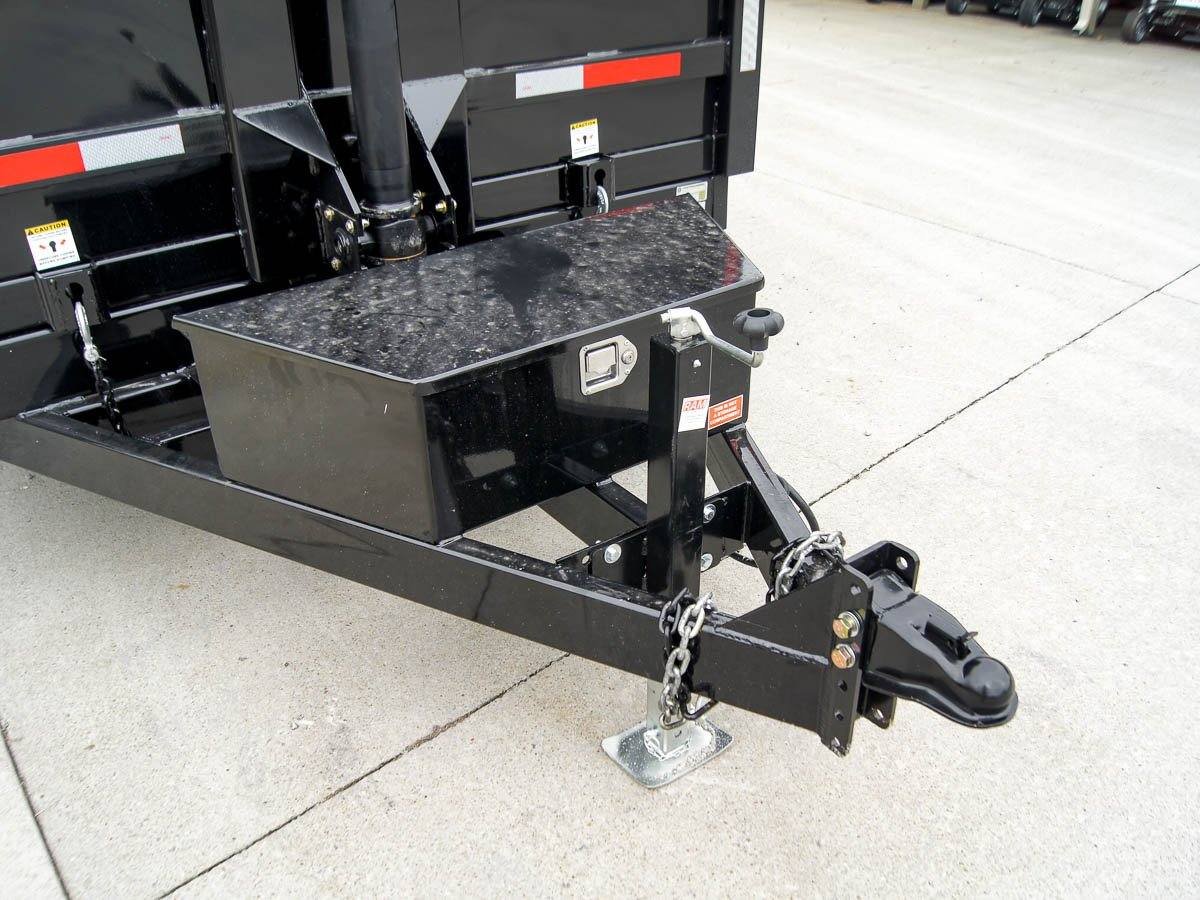

Adjustable 2-5/16″ Ram Coupler – Ensures a secure, customizable connection to a wide range of tow vehicles for safer, smoother towing.
-

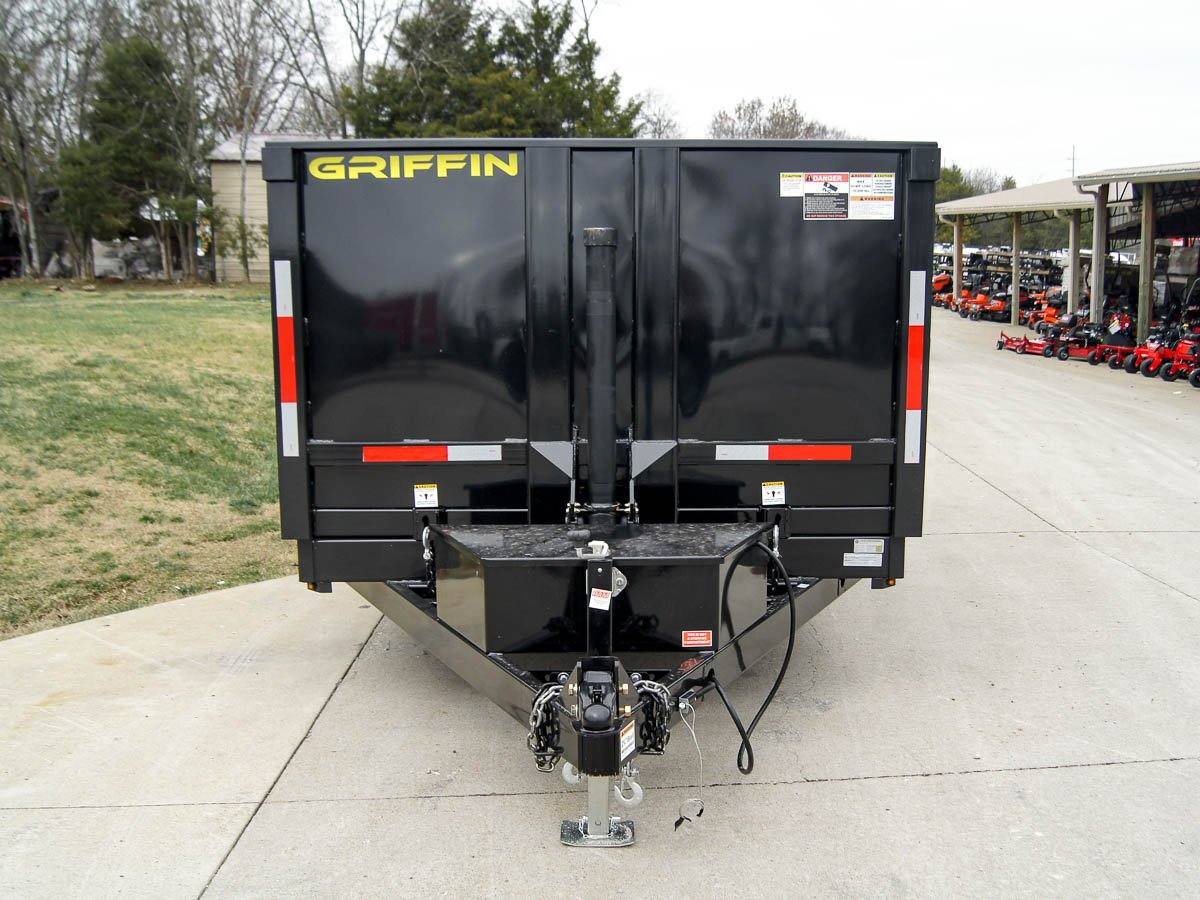

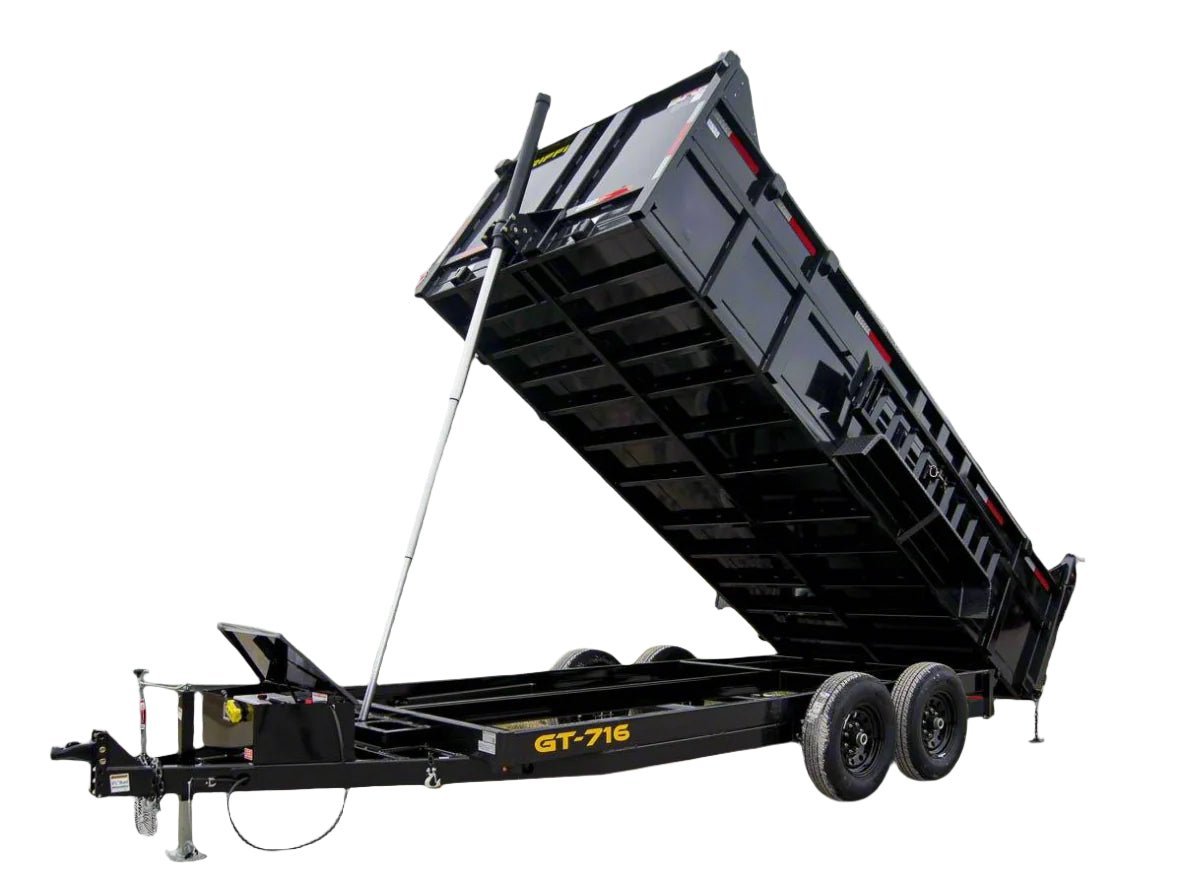

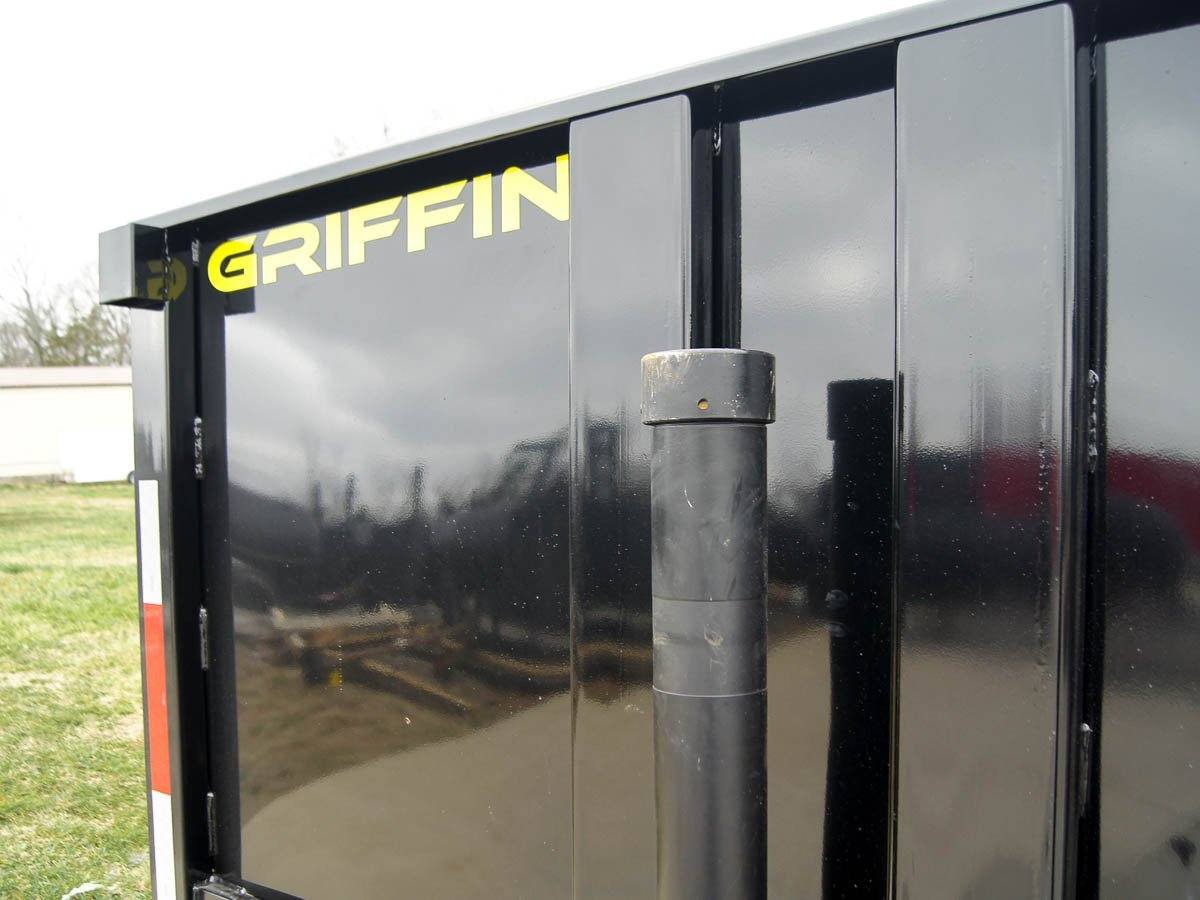

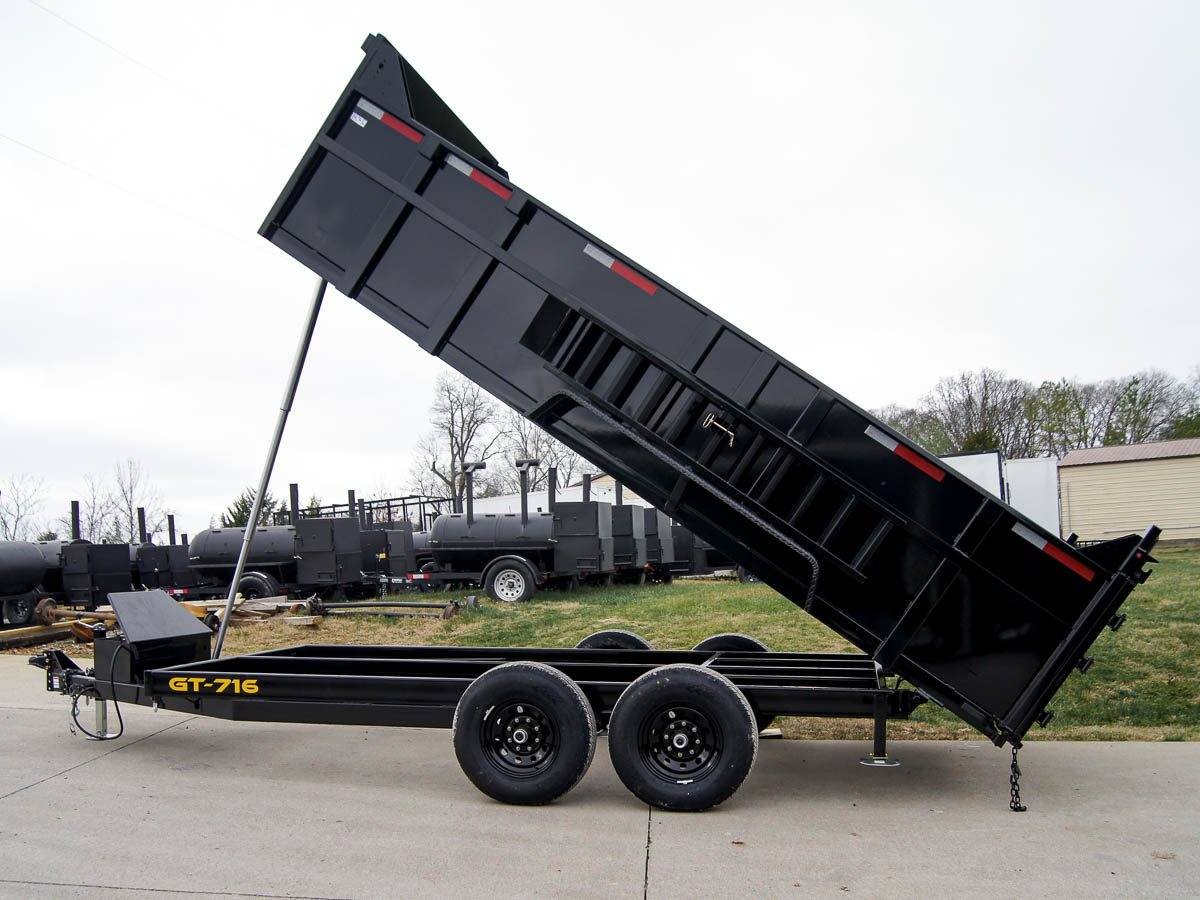

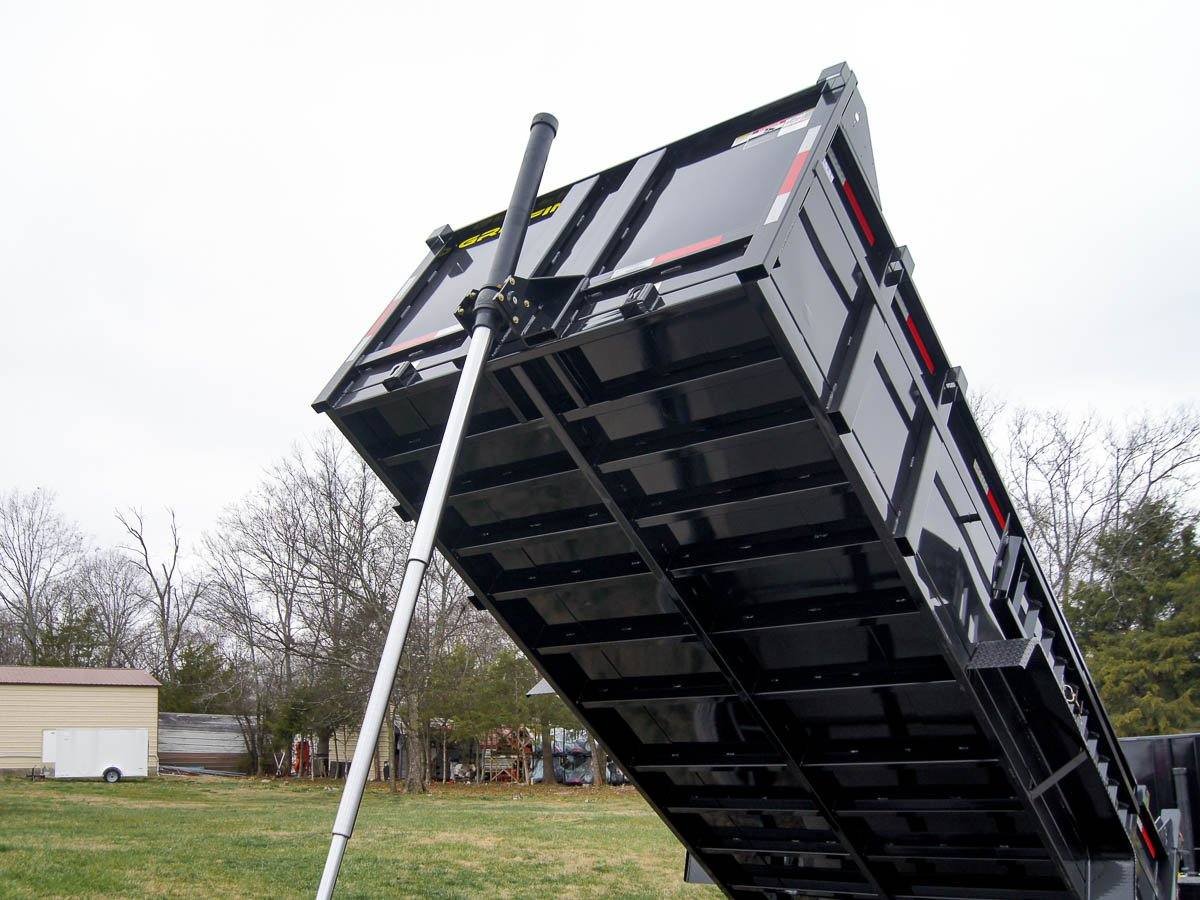

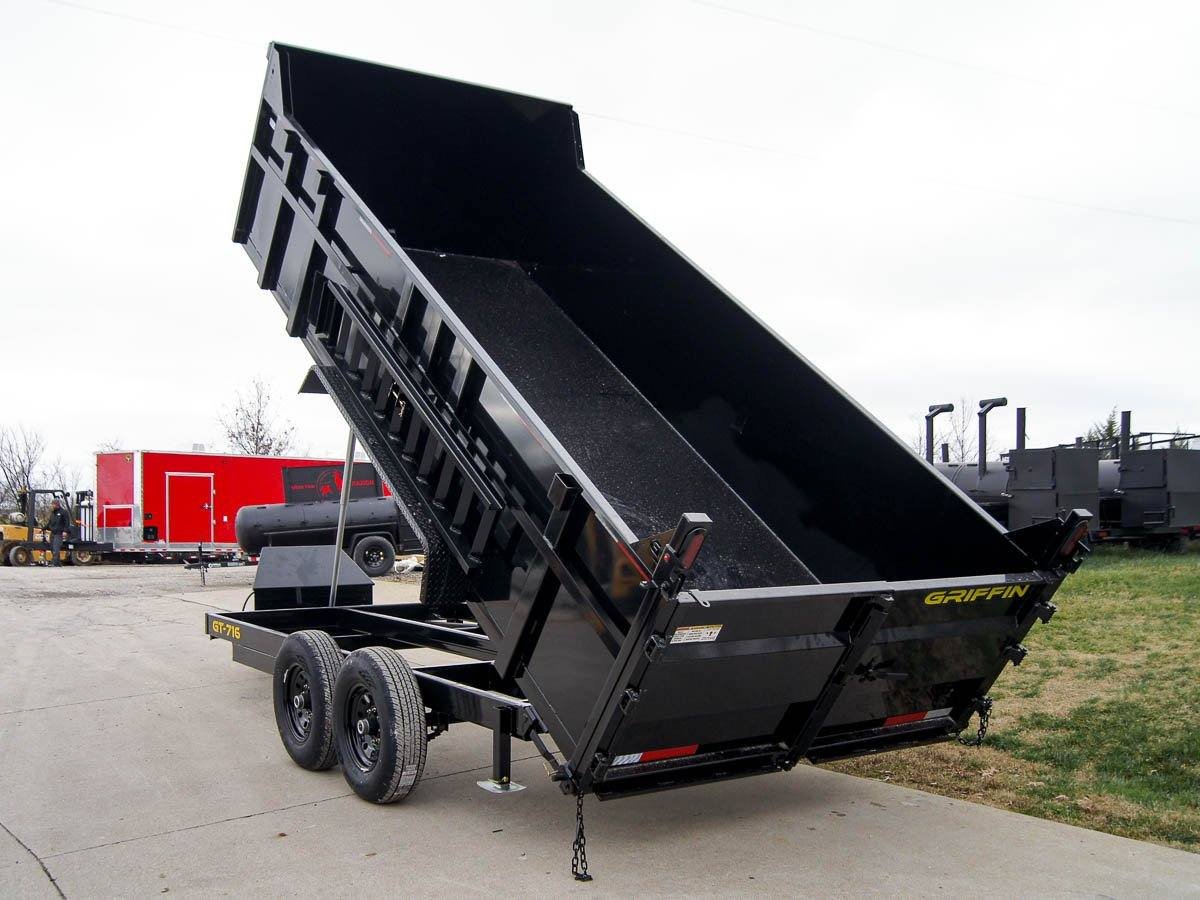

Heavy-Duty Telescopic Lift System – A powerful 3-stage telescoping hoist delivers efficient dump cycles and a 10,000 lb. dumping capacity.
-

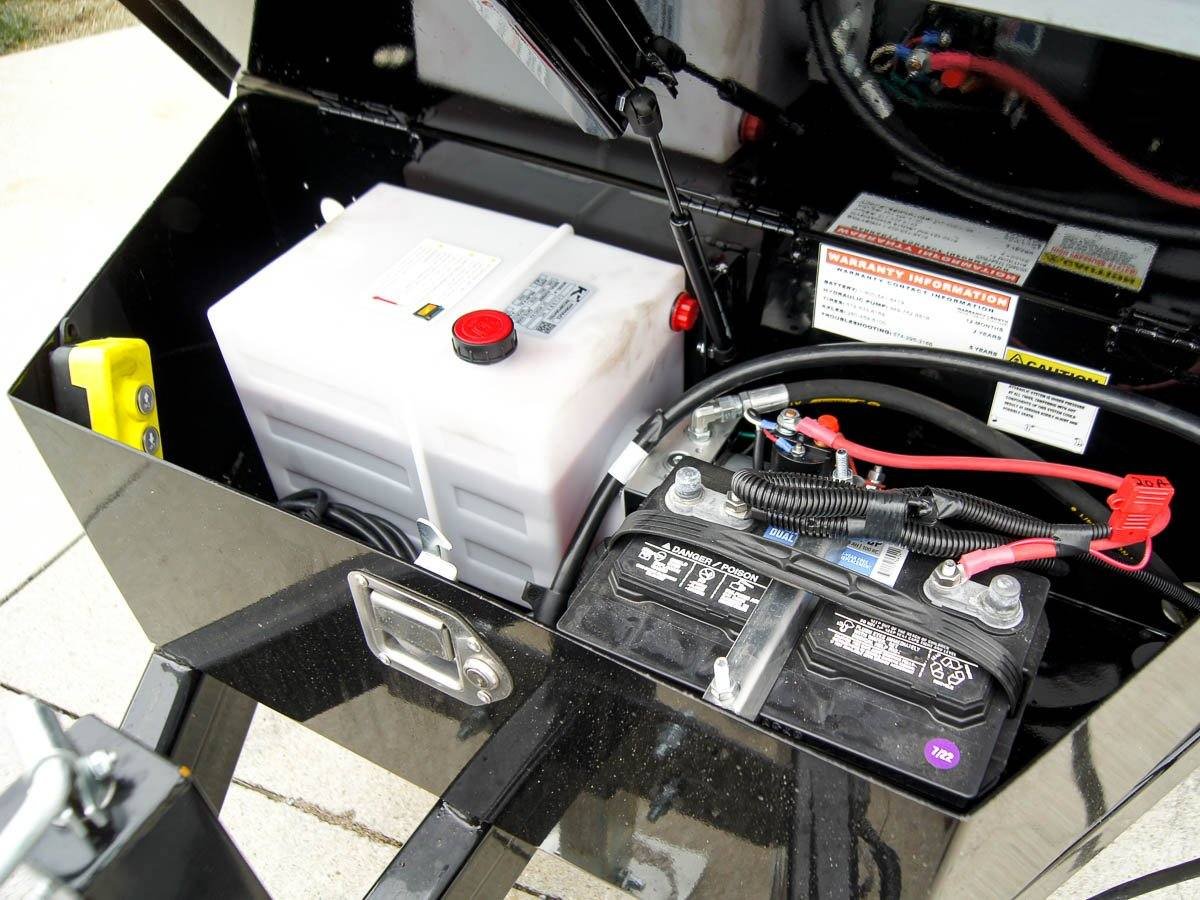

Hydraulic Power Unit – 12V DC pump (3200 PSI power-up) paired with an Interstate deep-cycle marine battery for reliable lift performance on the job.
-

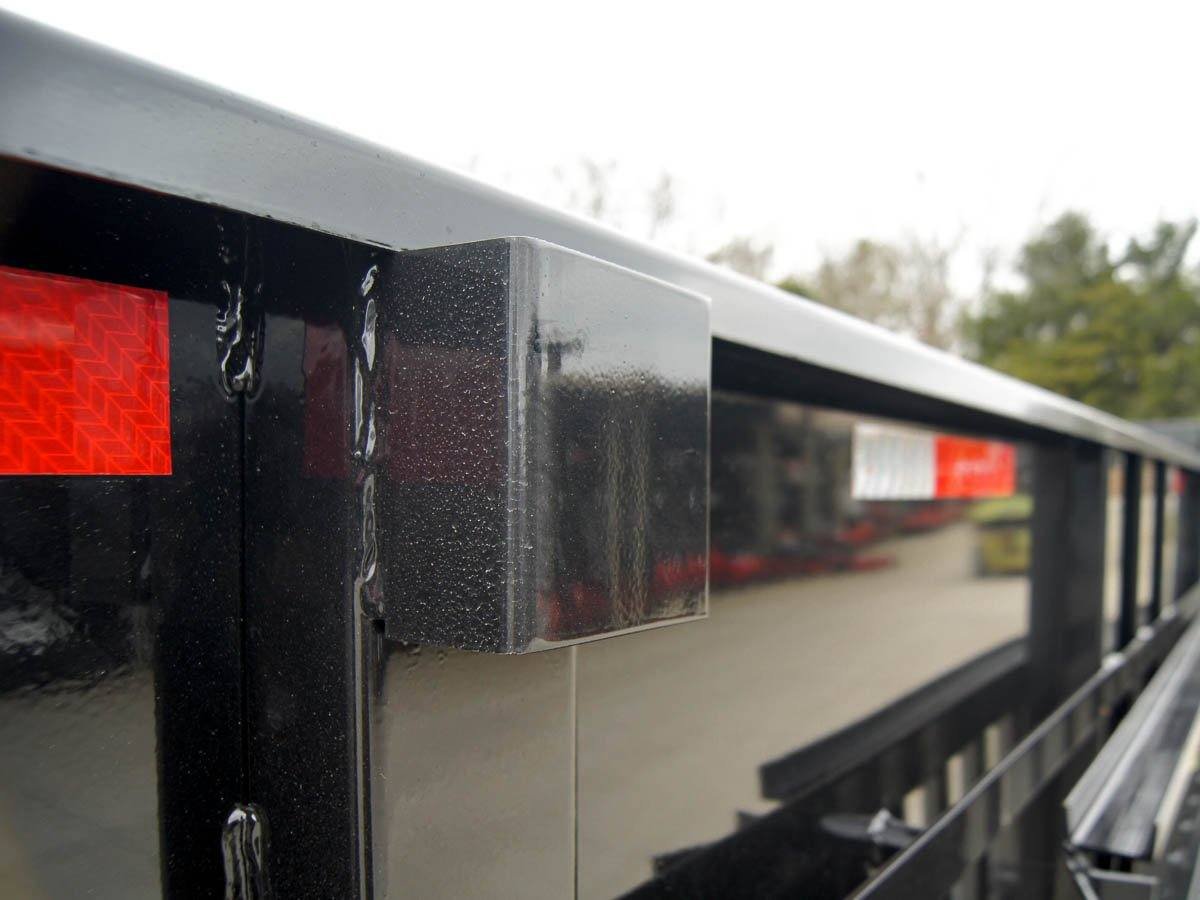

Robust 10-Gauge Steel Construction – Smooth steel floors and walls paired with 2″ x 3″ crossmembers (16″ O.C.) deliver superior strength and long-term durability.
-

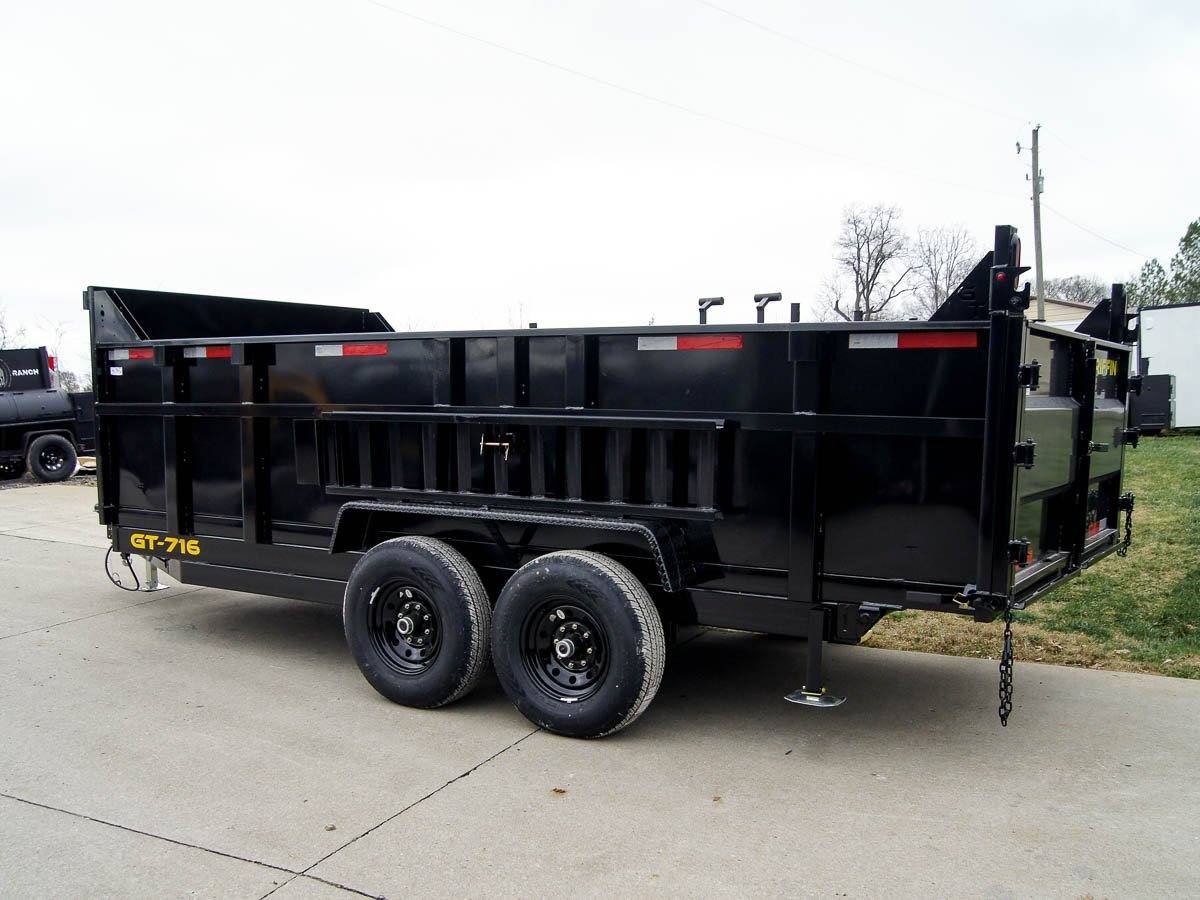

(2) 7,000 lb EZ-Lube Axles – Tandem axles with brakes and galvanized components offer a true 14K GVWR and reduce maintenance downtime.
-
Equalized Leaf Spring Suspension – Ensures stable towing, reduced bounce, and smoother road handling under heavy loads.
-

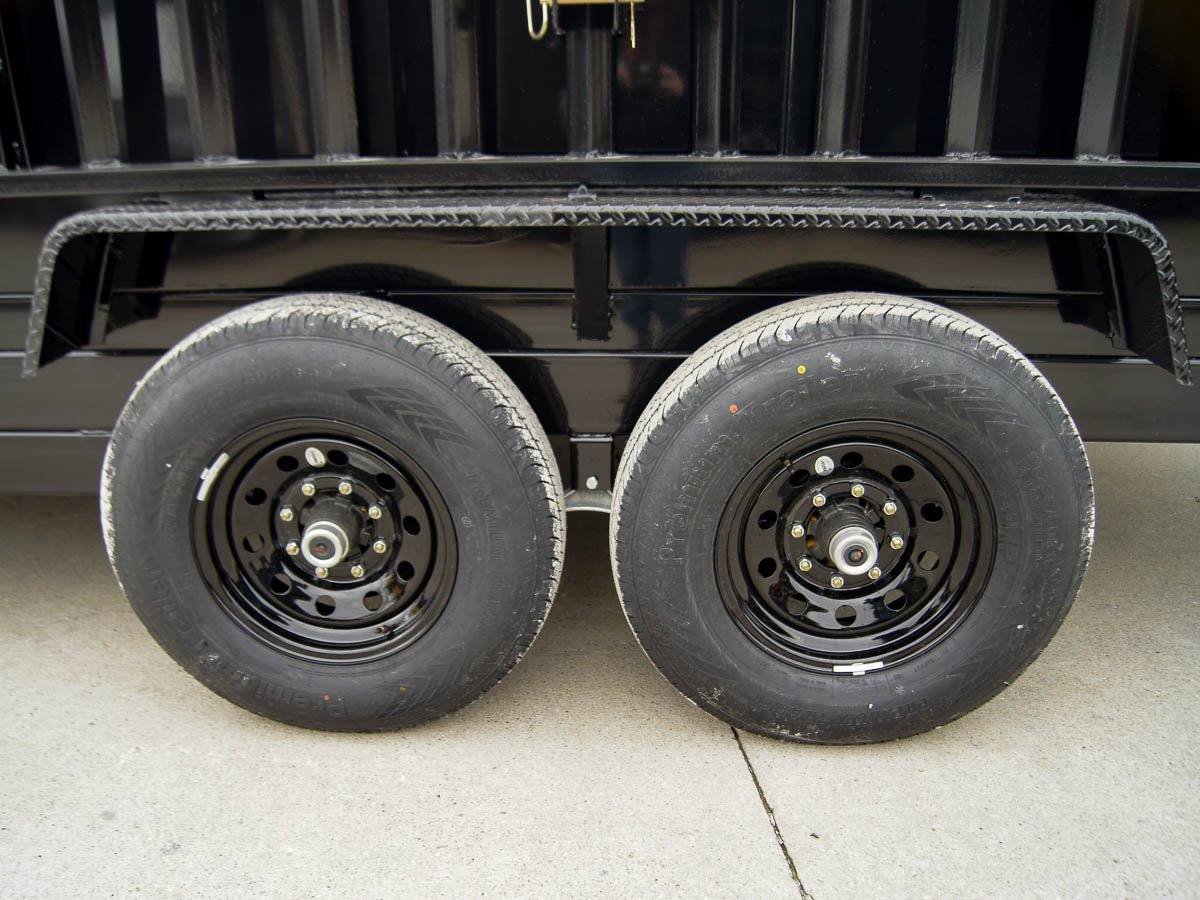

Premium 16″ Radial Kenda Tires – Mounted on black powder-coated wheels, providing enhanced tread life and dependable traction.
-

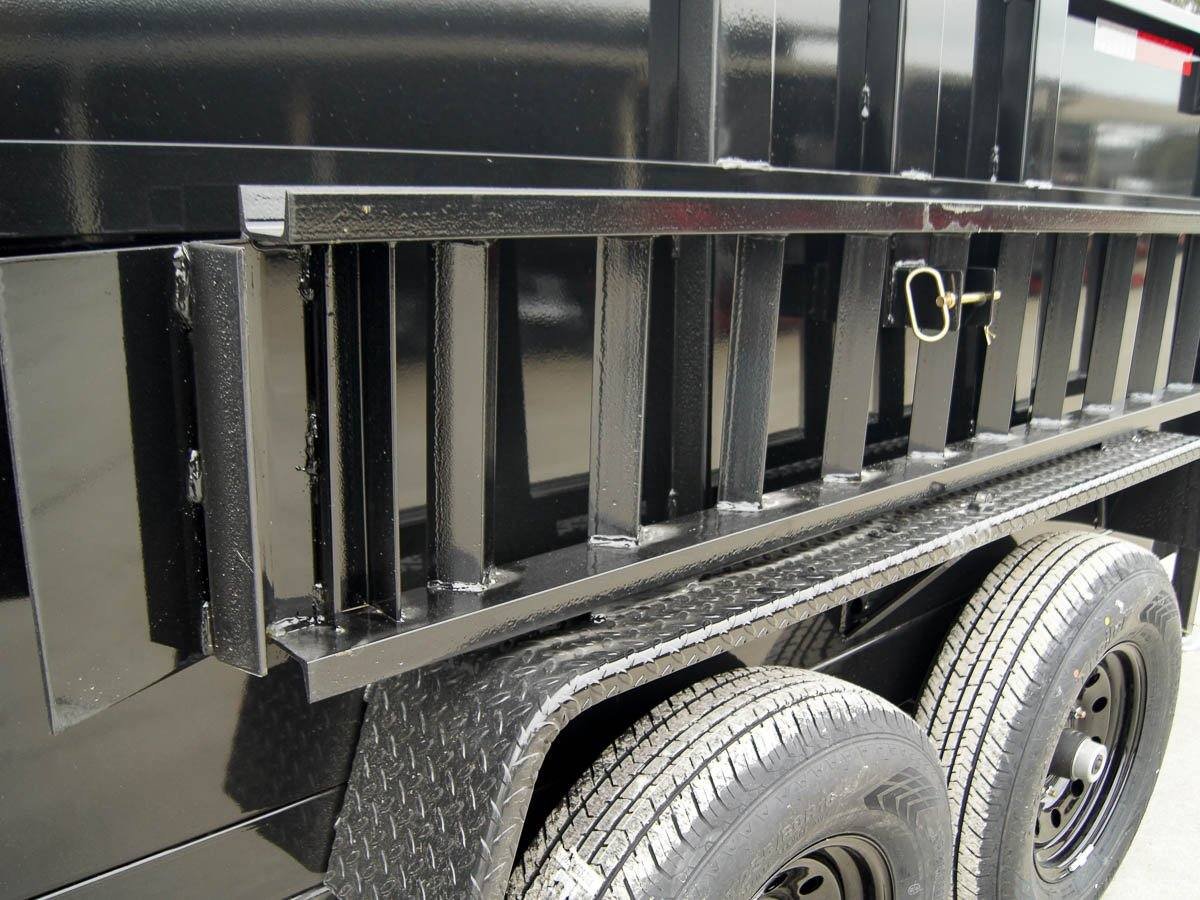

80″ C-Channel Ramps – Fender-mounted loading ramps allow easy access for skid steers, compact tractors, and heavy equipment.
-
Secure Heavy-Duty Design – 14-gauge diamond plate fenders and reinforced gussets (front and rear) increase structural integrity.
-

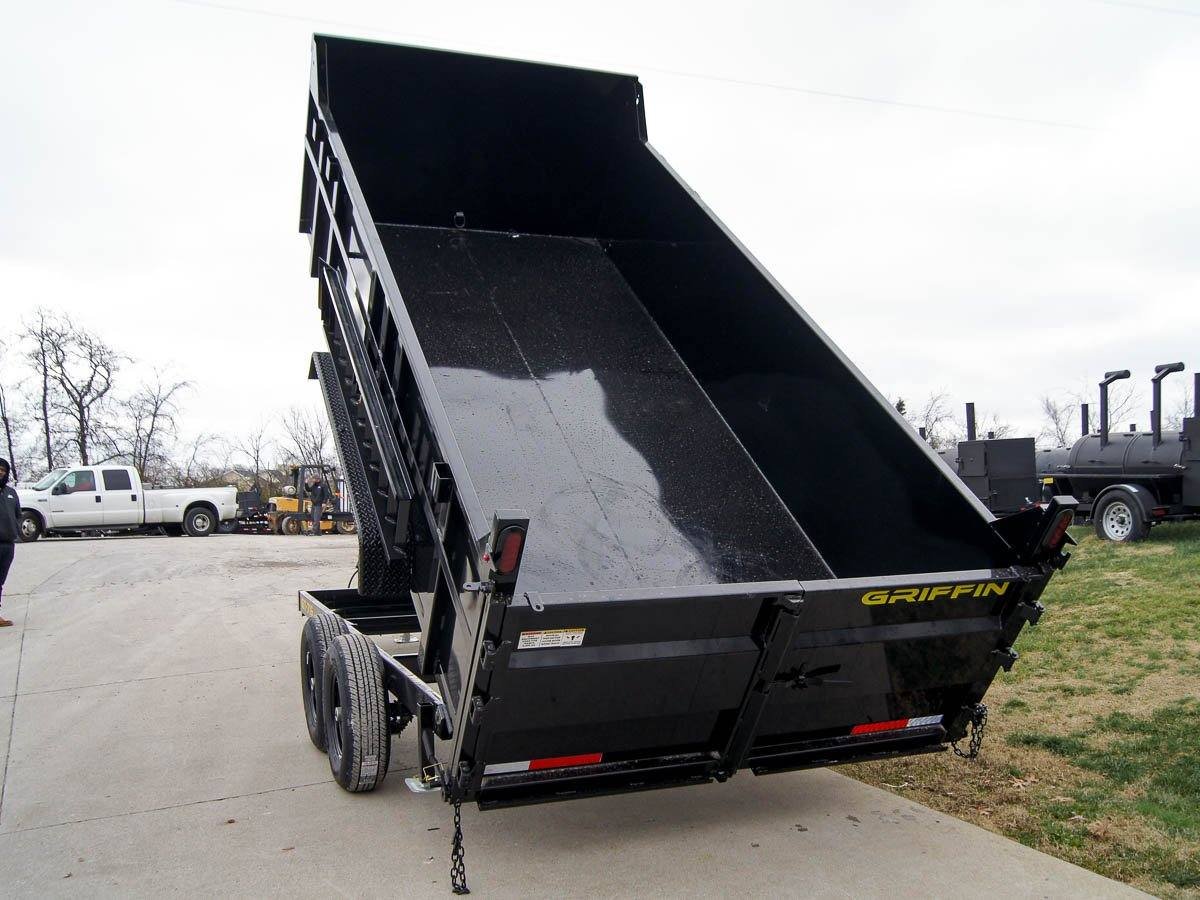

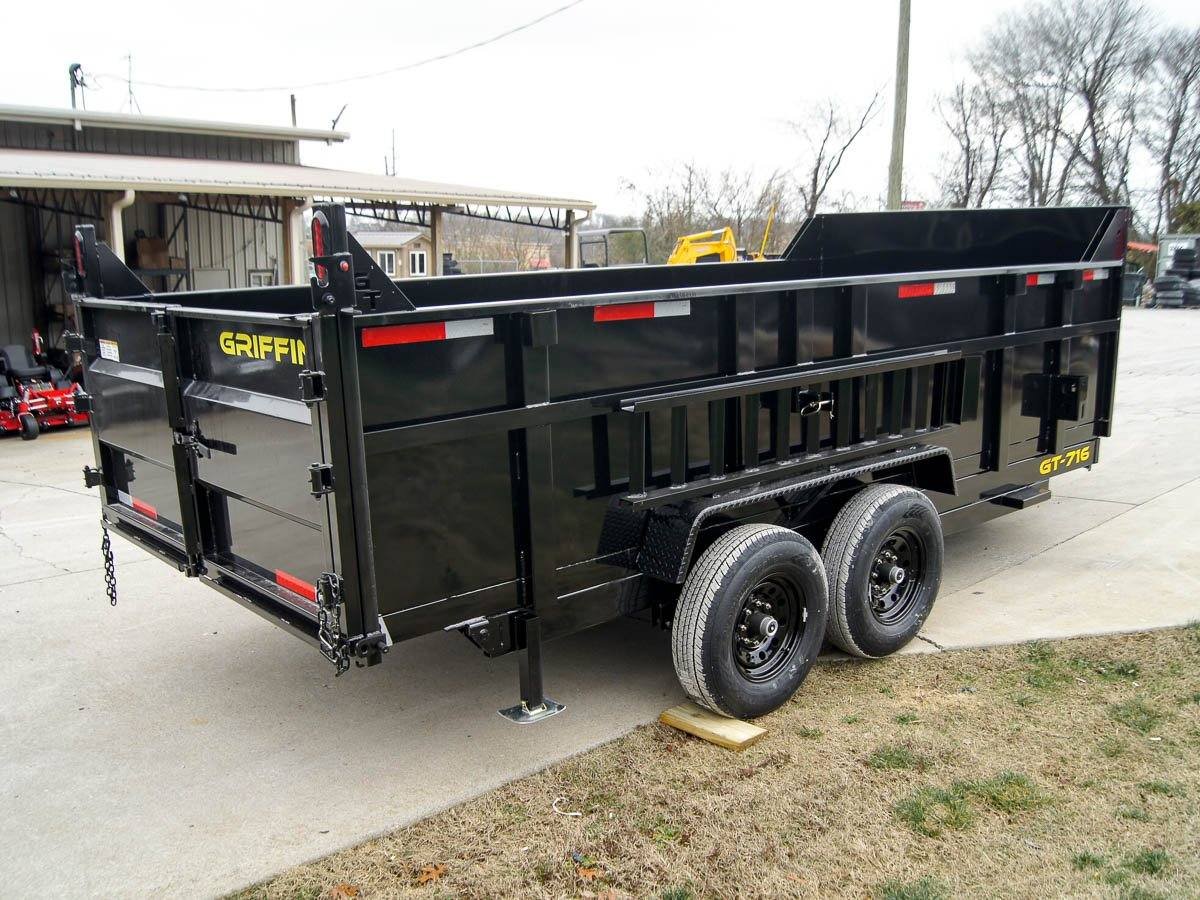

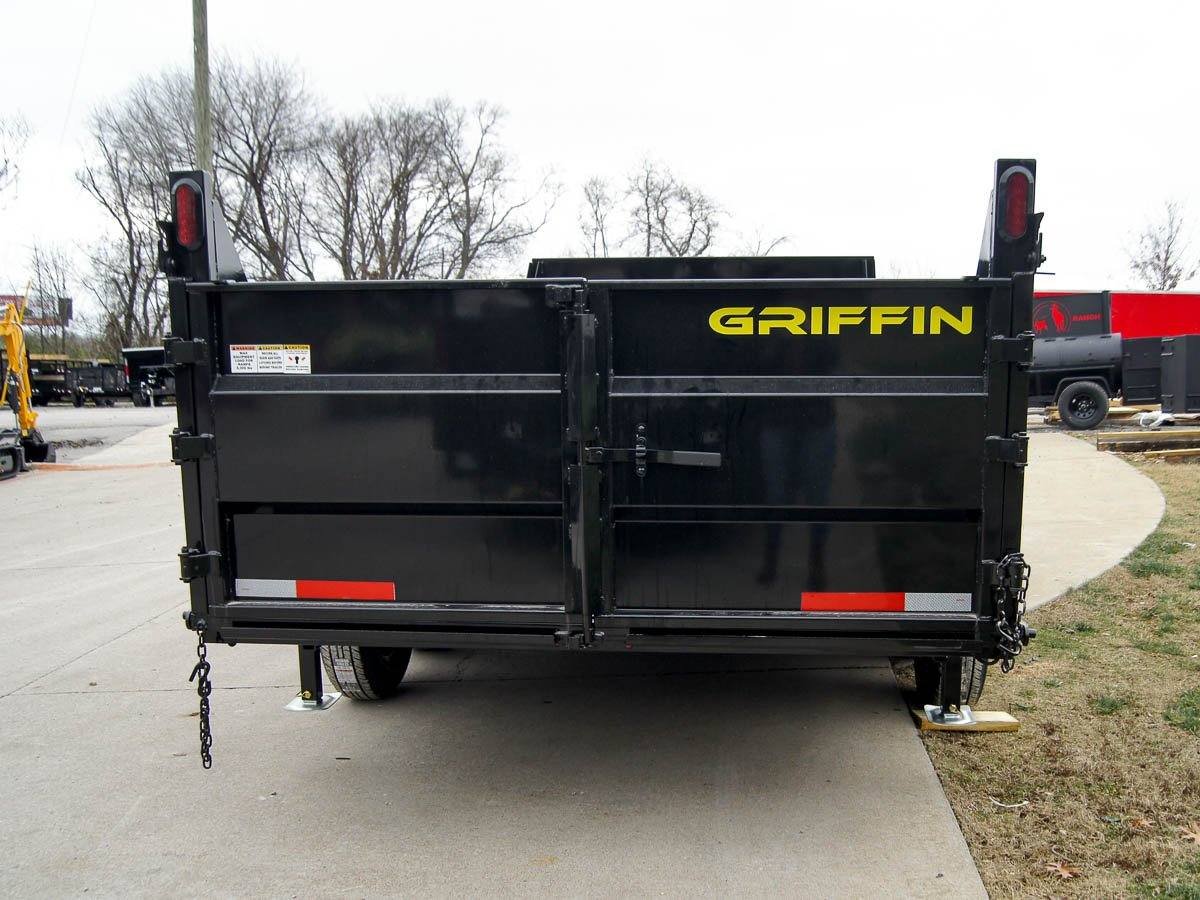

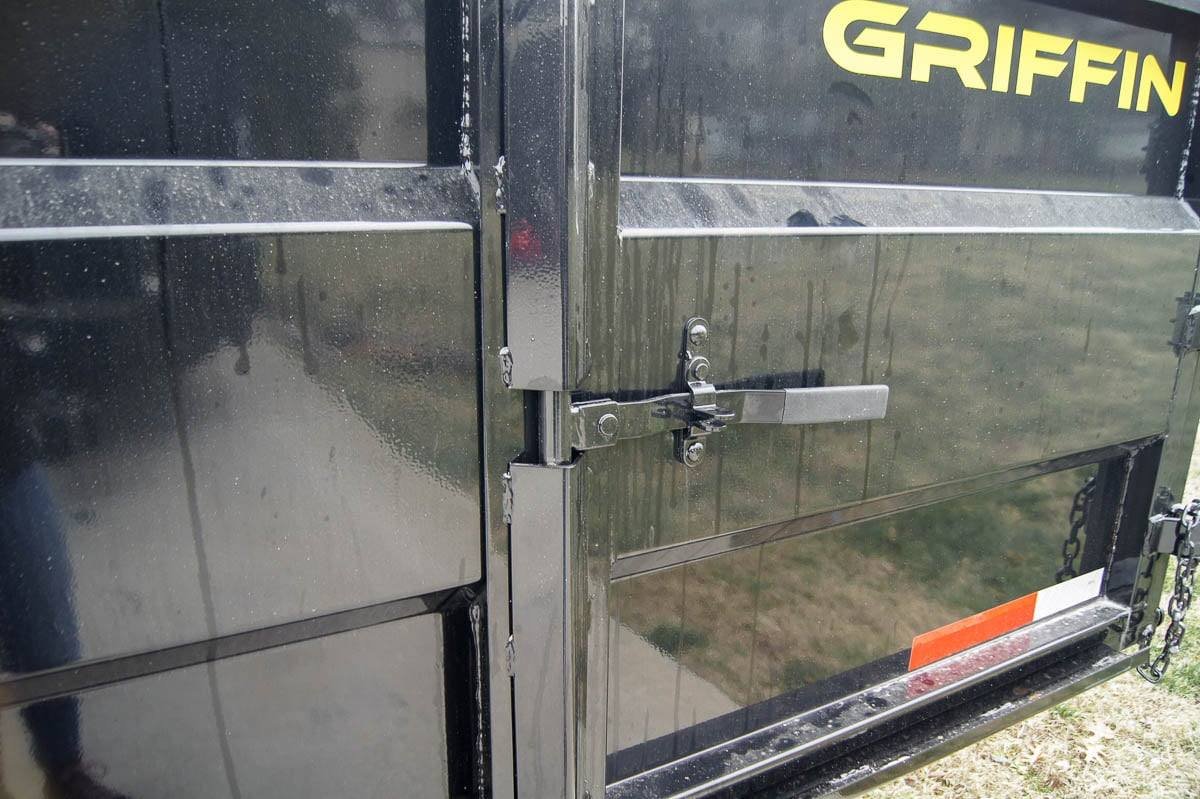

Versatile 2-Way Rear Gate – Combination barn-door and spreader gate allows controlled unloading of gravel or wide-open access for equipment.
-
Five Welded D-Rings – 5,000-lb tie-downs welded into the floor give multiple securement points for machinery or materials.
-

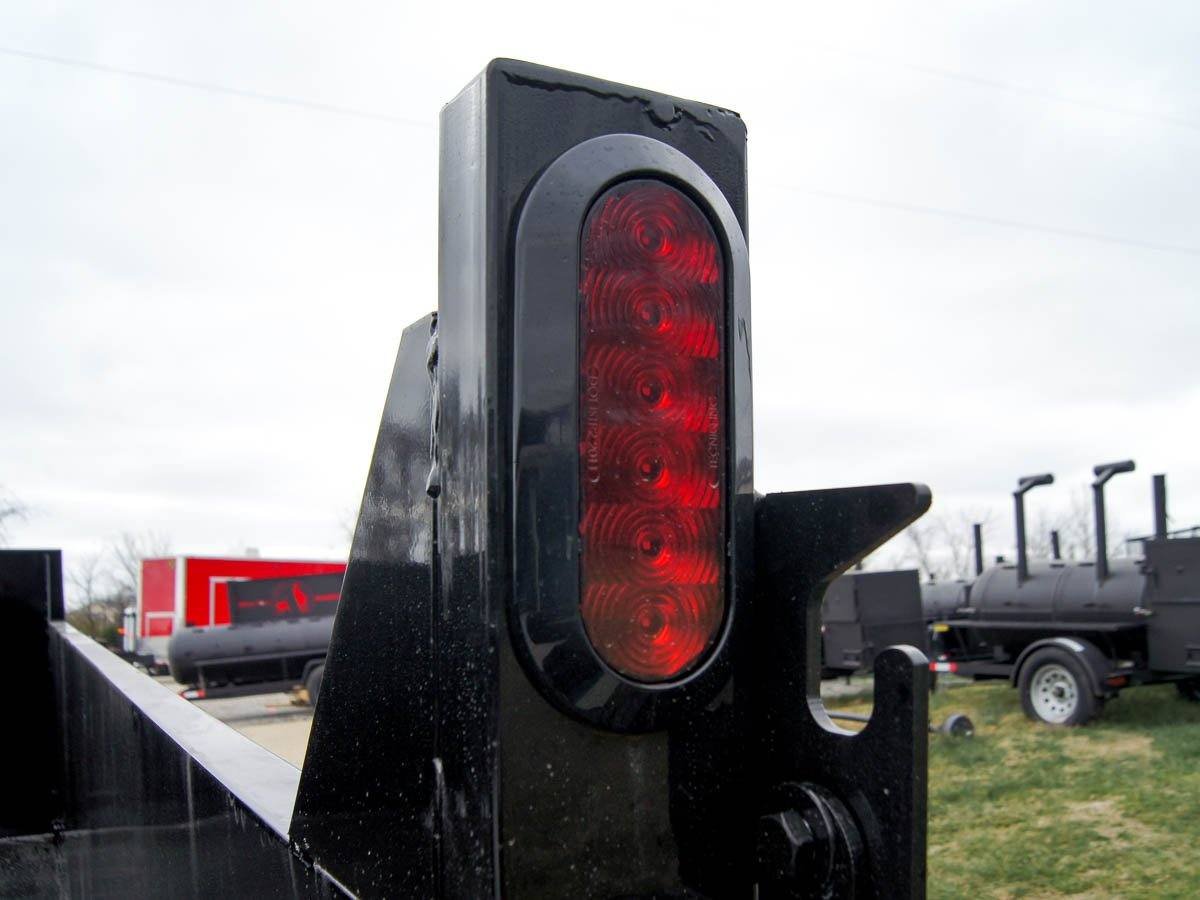

High-Visibility LED Optronics Lighting – Lifetime-warrantied marker and tail lights ensure bright, long-lasting visibility on job sites and highways.
-
Sherwin-Williams Powder-Coated Finish – High-gloss black powder coat provides superior corrosion, chip, and abrasion resistance.
-
Standard Spare Tire Mount – Conveniently placed for quick access when needed.
-
3-Piece Plug-and-Play Wiring Harness – Simplifies maintenance and ensures a reliable electrical connection.
-

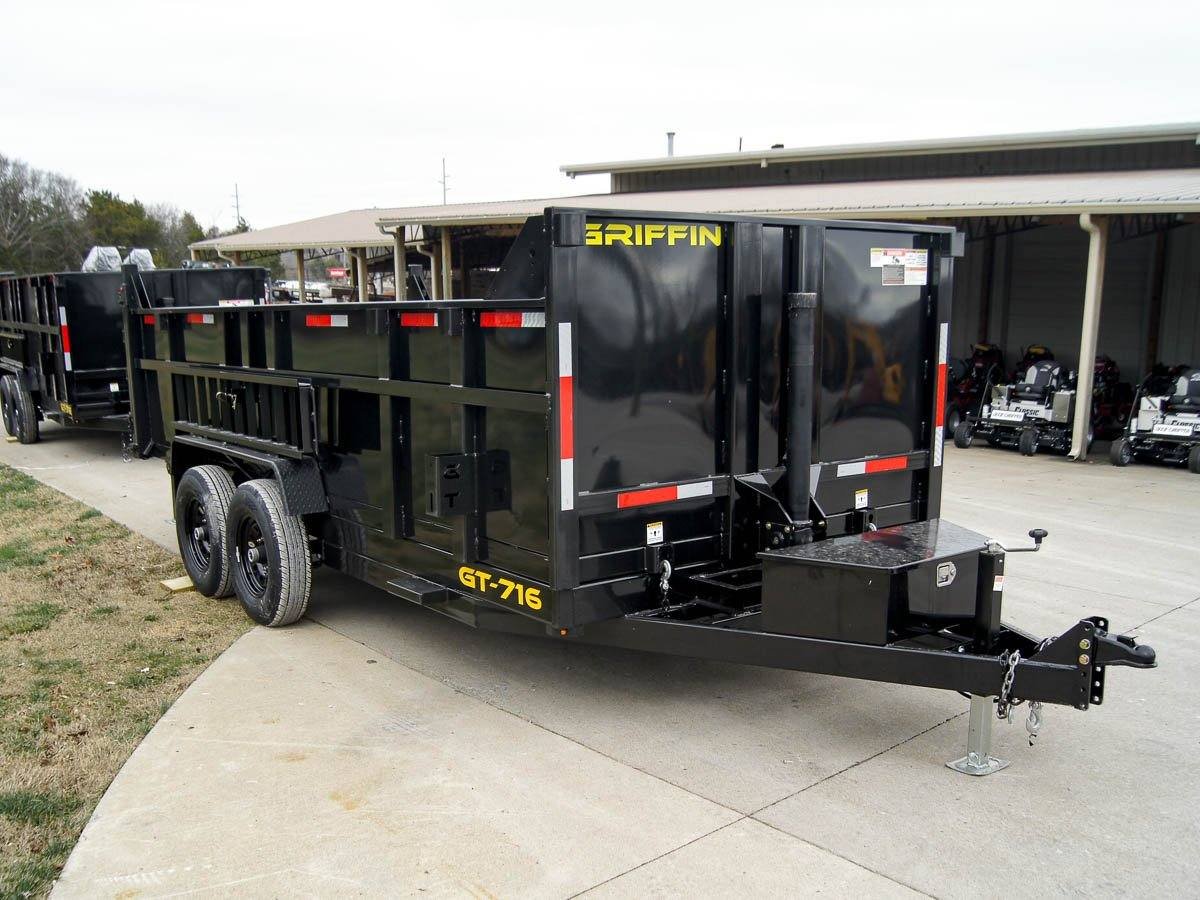

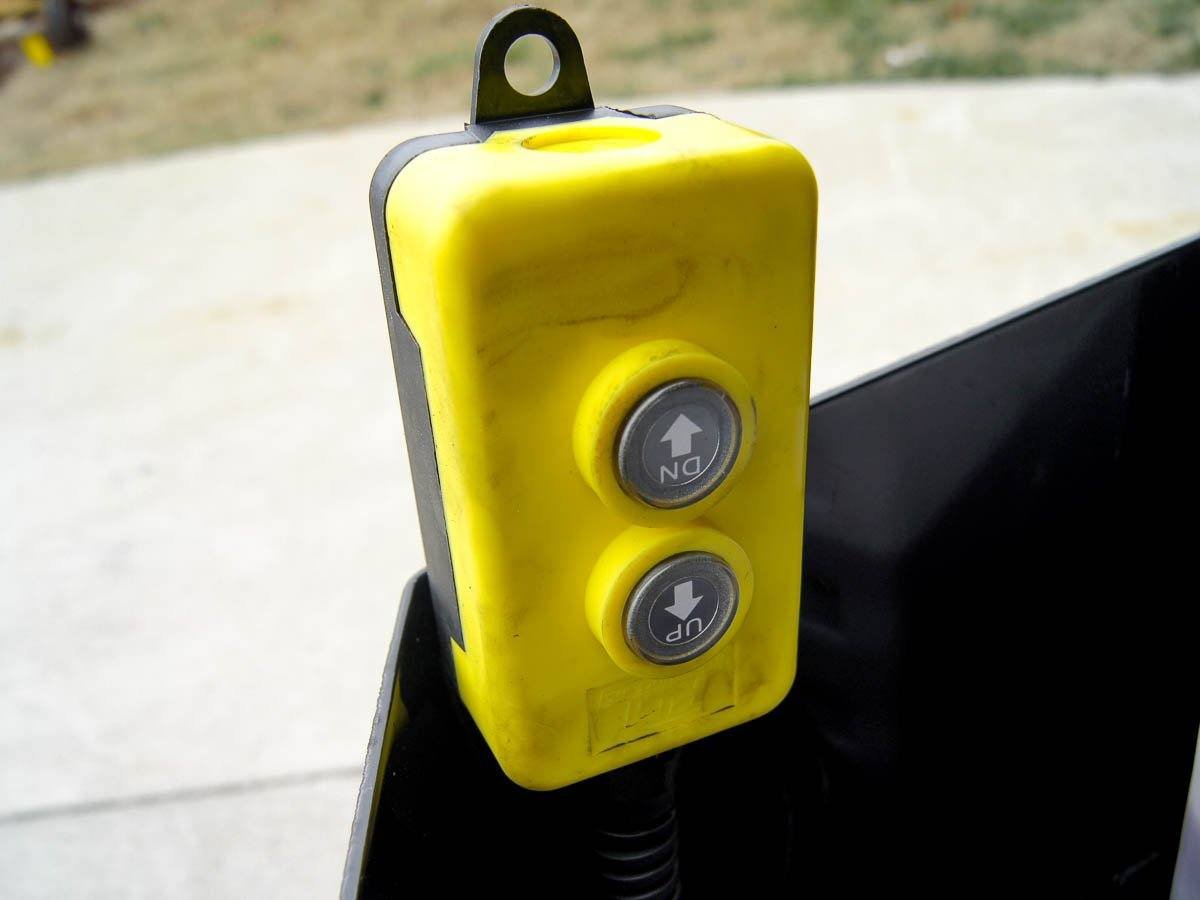

Secure Control Box – Front-mounted with a locking cover for protected, easy hydraulic operation.
-
Strong 2″ x 5″ Tongue Tube – Delivers dependable towing strength and reduced frame flex.
-
High Payload & Performance – 9,145 lb. payload capacity, 4,855 lb. curb weight, and balanced 580 lb. tongue weight for confident hauling.
