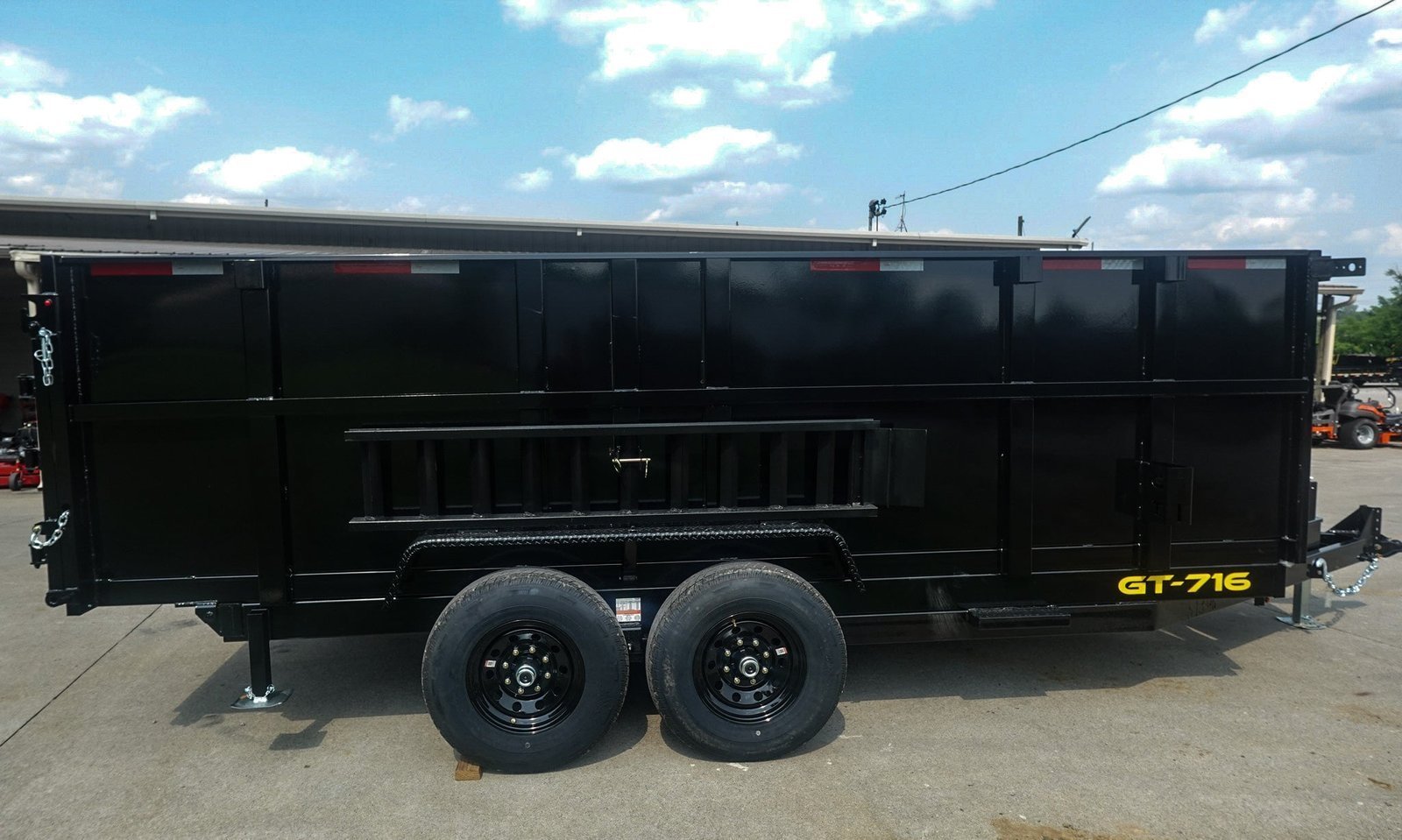

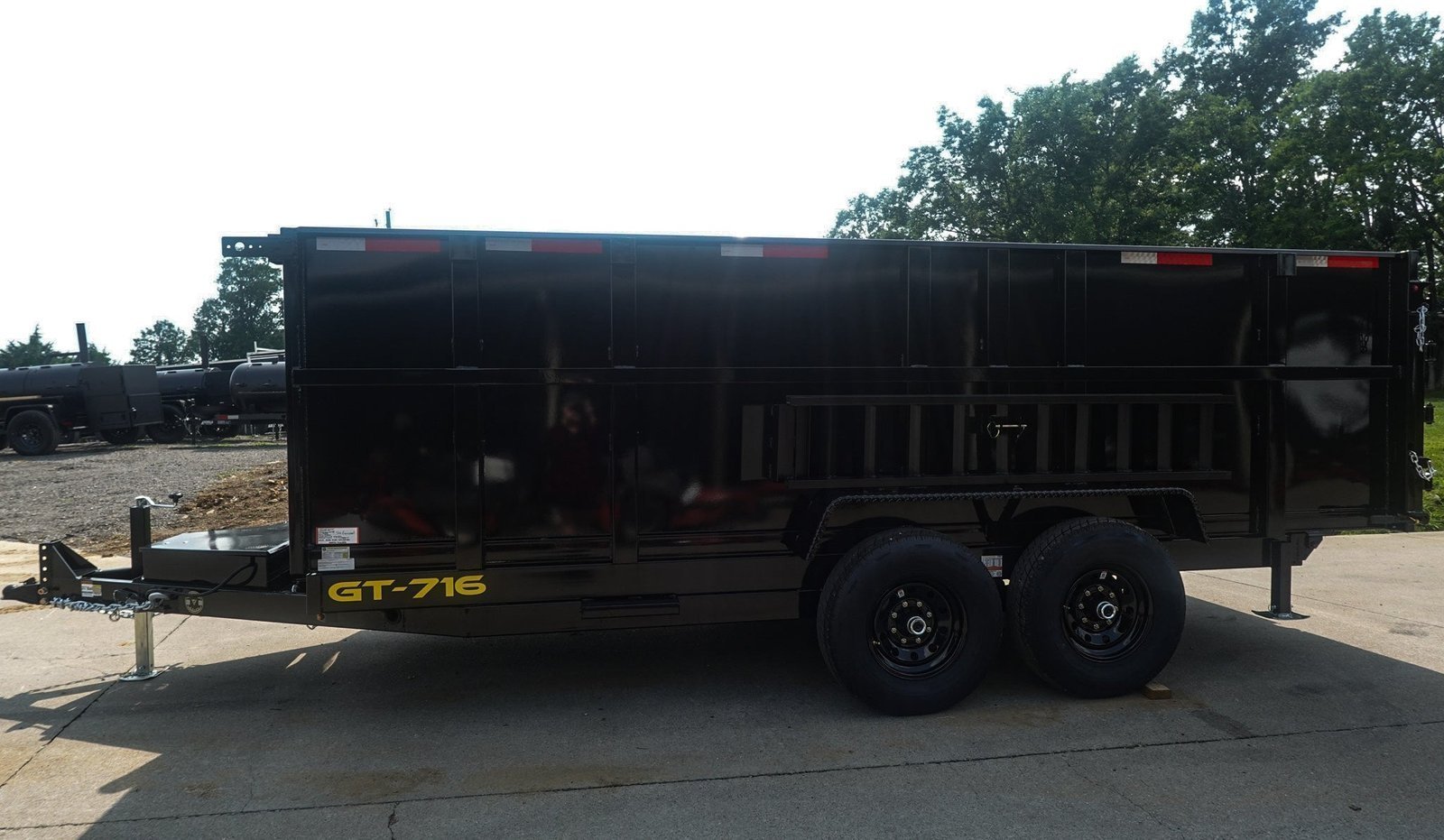

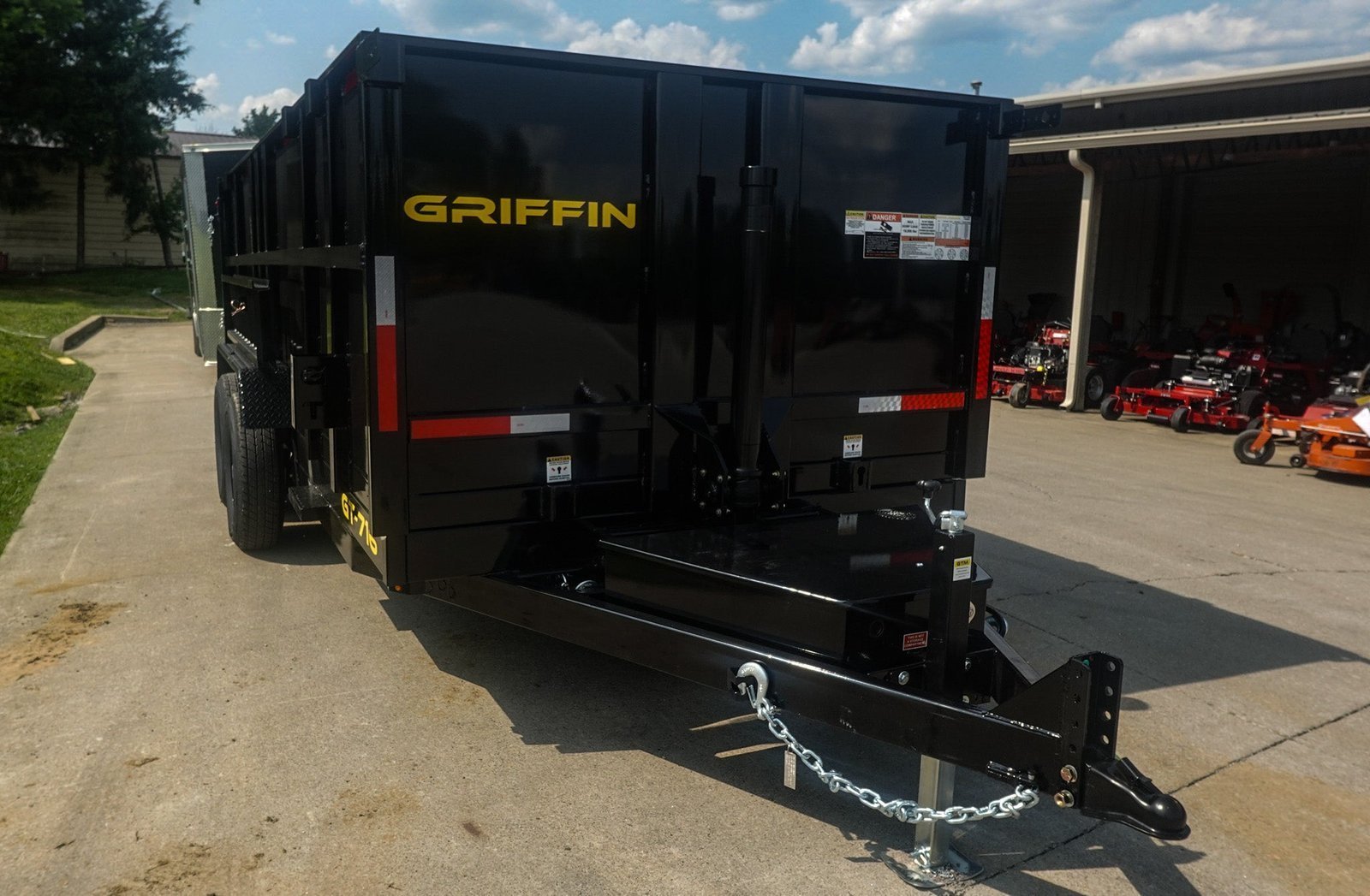

7×16 Telescopic Dump Trailer with 4ft Sides (2) 7K Axles 14k GVWR

7×16 Telescopic Dump Trailer with 4ft Sides (2) 7K Axles

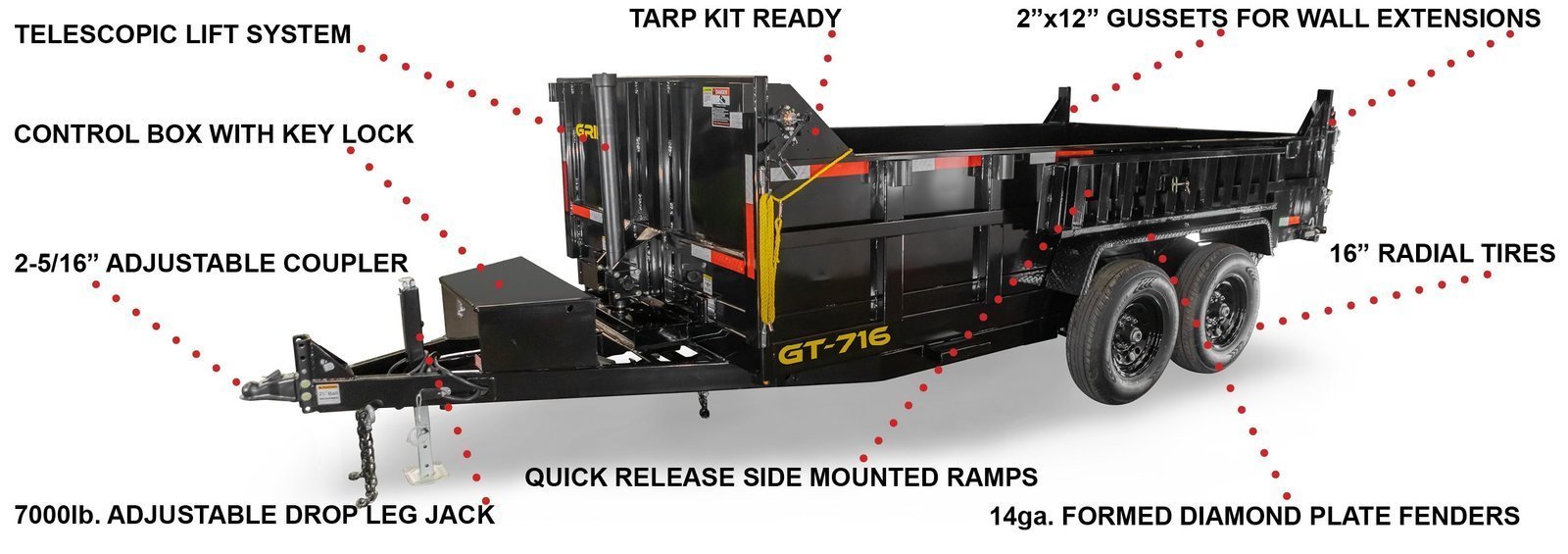

Features:

• The length of the trailer box is 16 feet (192 inches), providing ample space for transporting larger loads.
• The sidewall height is 48 inches, allowing for increased depth to accommodate various materials.
• The width of the trailer box is 7 feet (82.5 inches), offering a spacious loading area.
• The floor height is 29 inches, making it convenient for loading and unloading cargo.
• The coupler height stands at 18 inches, but can be adjusted ensuring compatibility with a variety of towing vehicles.
• The cross members are constructed from 2″ x 3″ tubes, spaced 16 inches on center to enhance structural integrity.
• The wheels feature a black powder coat finish, providing durability and resistance to corrosion.

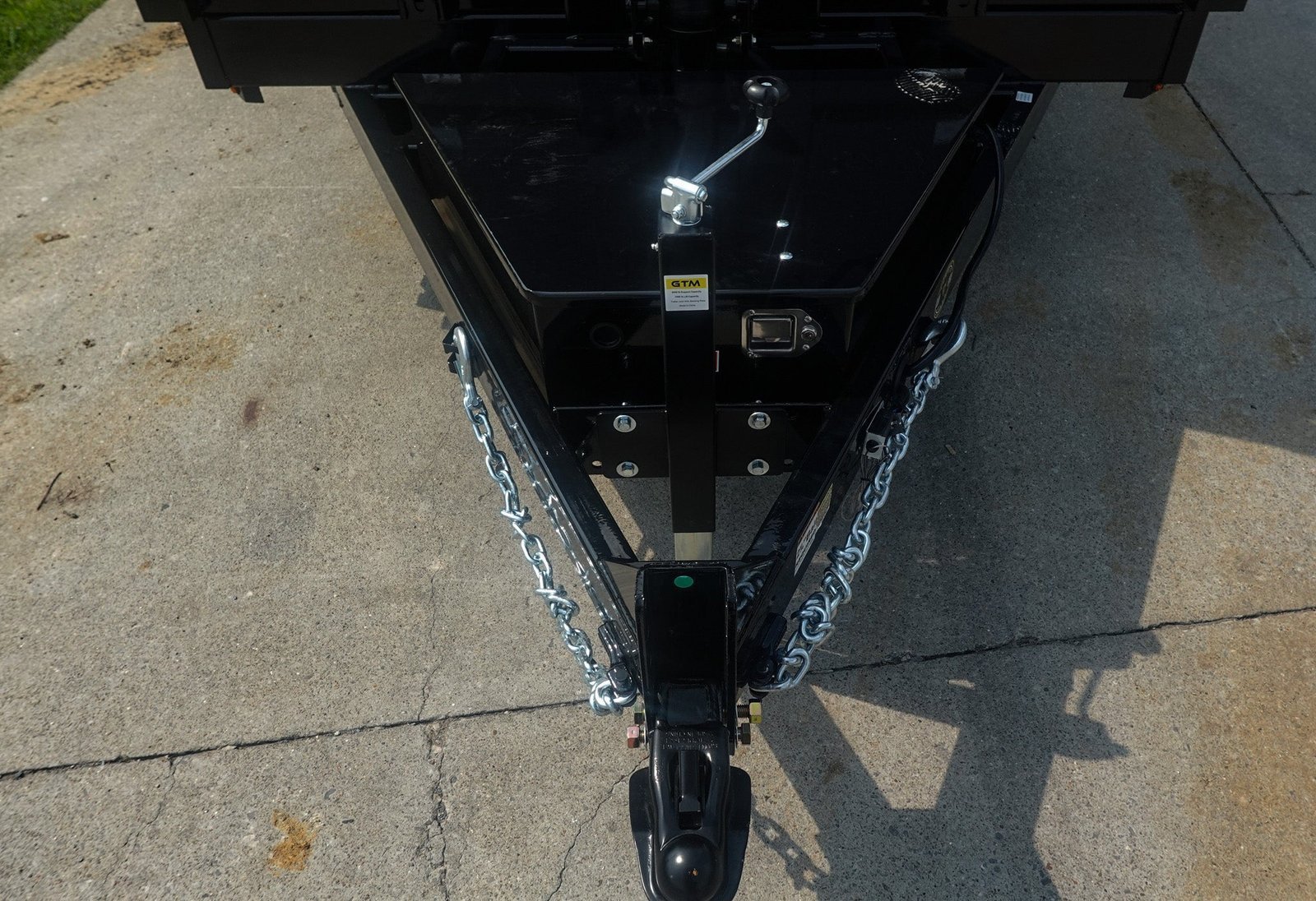

• The coupler is a 2-5/16″ adjustable coupler, which allows for flexibility in towing different vehicles.

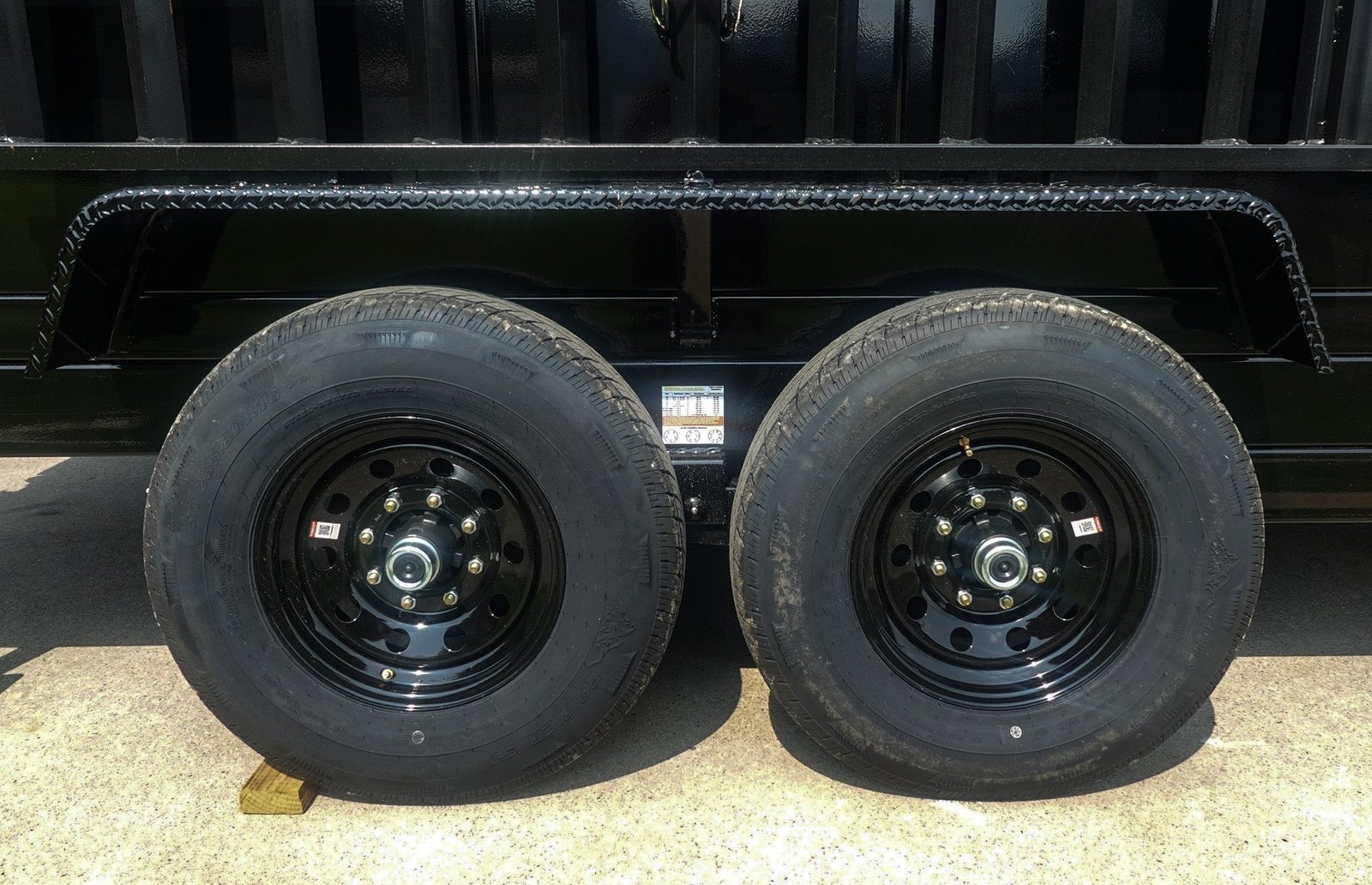

• The tires are 16-inch radial tires, designed for stability and smooth performance on the road. 10ply tires can be upgraded for a fee.
• 12v DC Hydraulic Pump – (3200 PSI Pwr Up) (0 PSI Pwr Down)
• The trailer is equipped with a standard spare tire mount, ensuring easy accessibility for the spare tire.

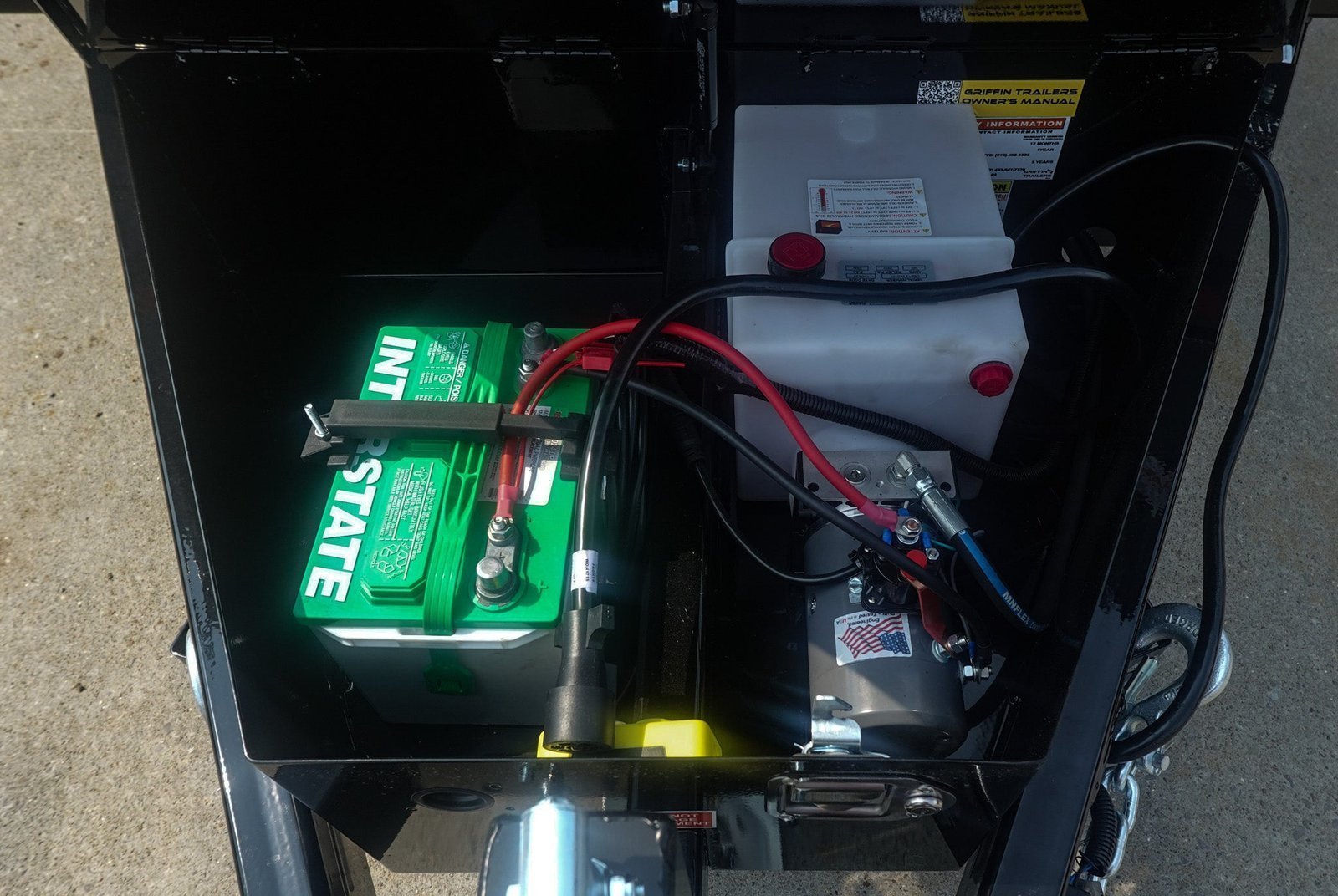

• The battery is an Interstate deep-cycle marine battery, providing a reliable power supply for the trailer’s systems.

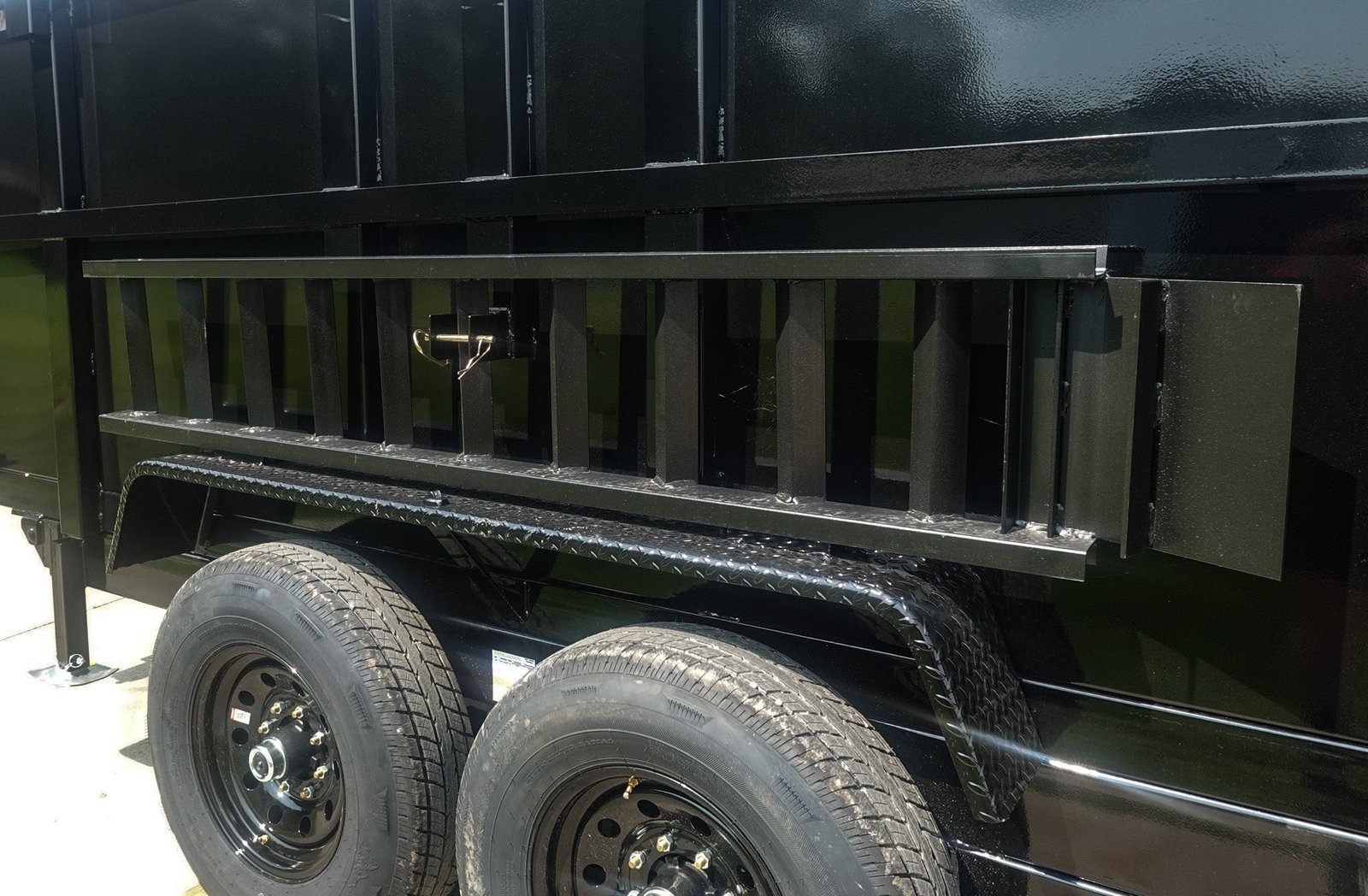

• The ramps are 80-inch C-channel fender-mounted ramps, facilitating straightforward loading and unloading of equipment.
• The jack is an adjustable 7000lb top wind drop leg, allowing for easy height adjustments and stability.
• The lighting system includes amber and red LED lights, enhancing visibility for safer operation during low-light conditions.

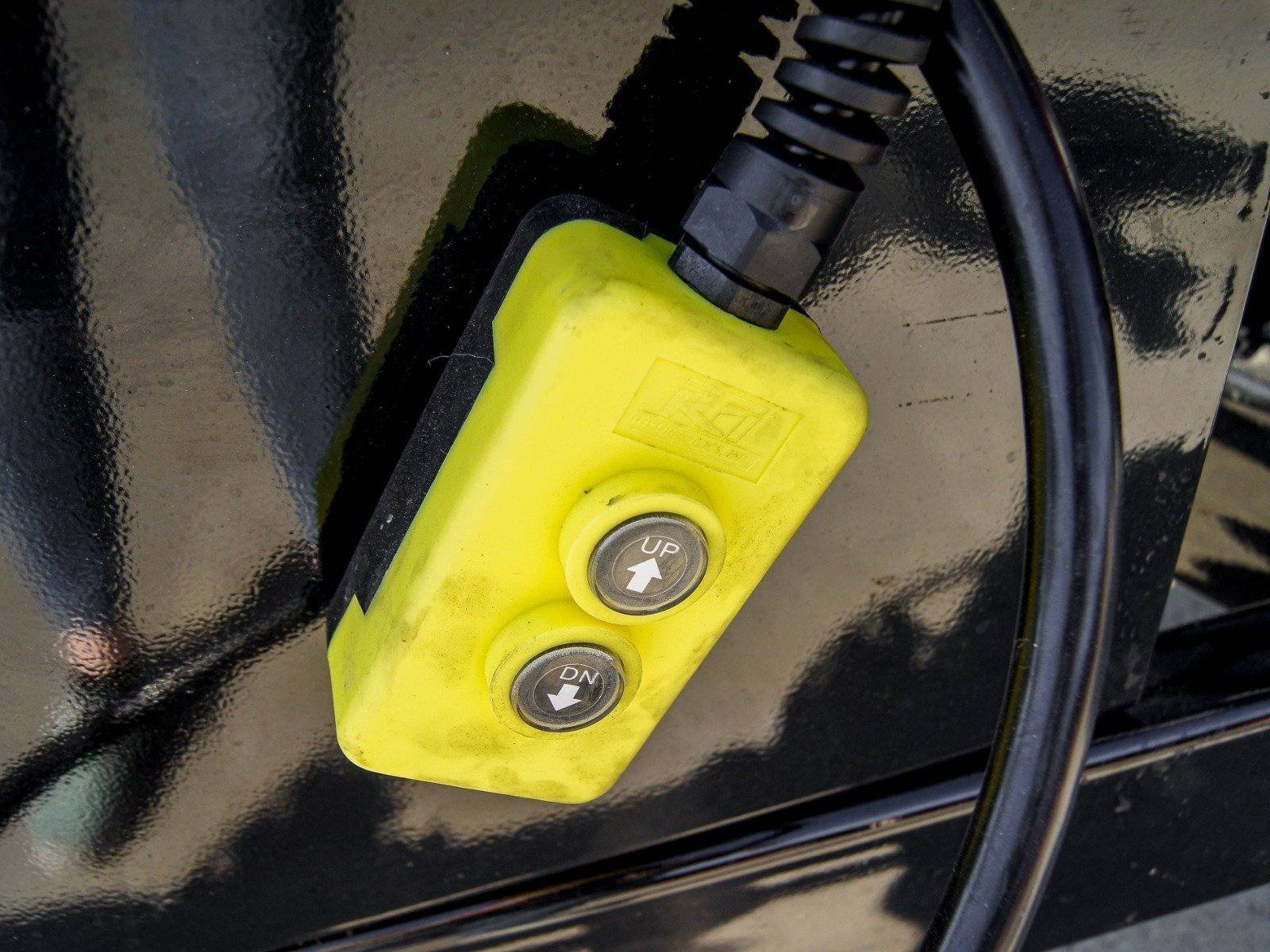

• The control box features a key lock for easy front access, ensuring security and user-friendly operation.
• The wiring harness is a 3-piece plug-and-play system, simplifying electrical connections for convenience.
• The fenders are constructed from 14-gauge formed treadplate, providing robust protection against road debris.
• The electric plug is a 7-pin round connector, which is standard for connecting to towing vehicles.
• The stake pockets are made from 2″ x 4″ tubes, offering secure tie-down points for cargo.

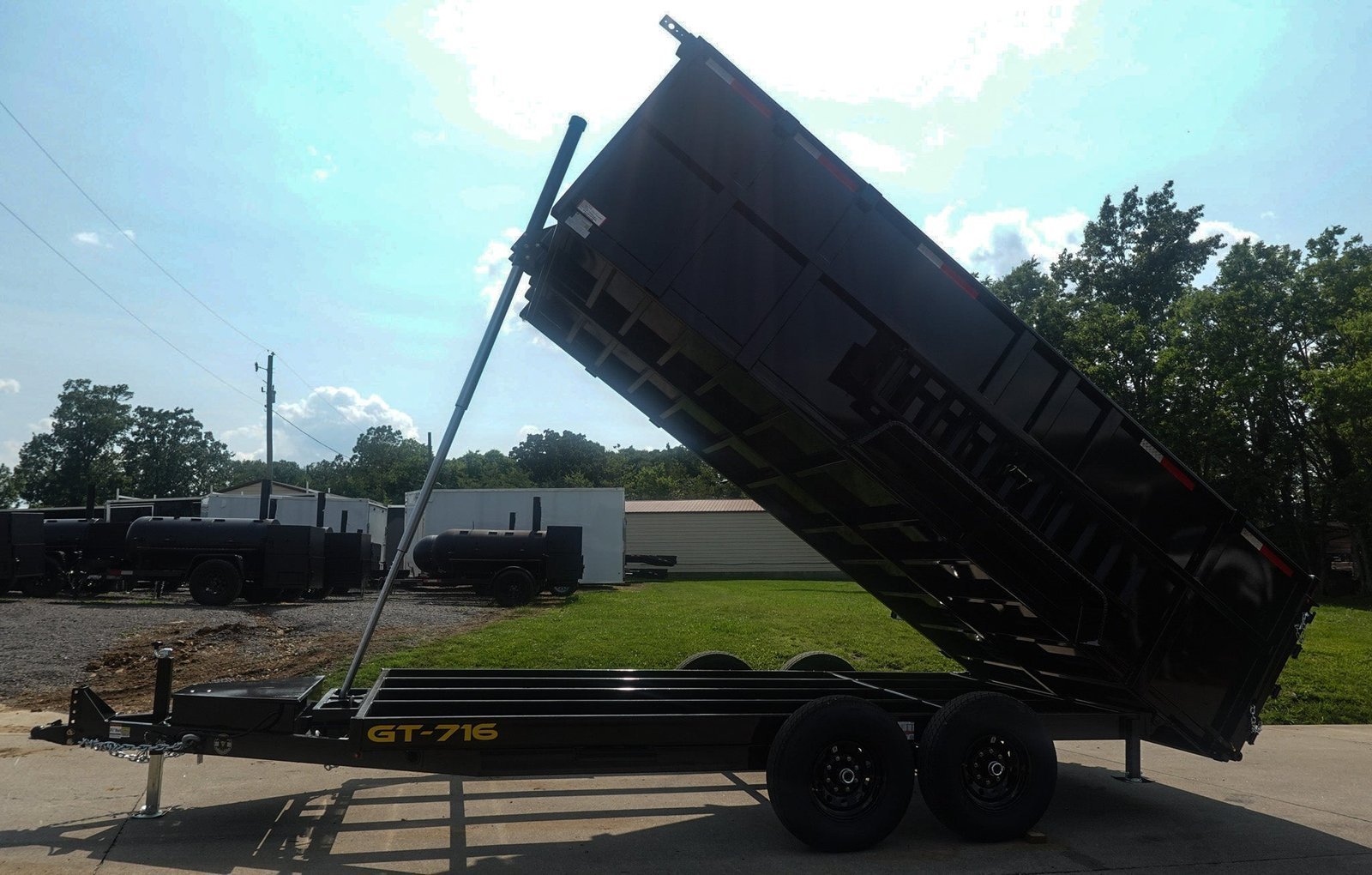

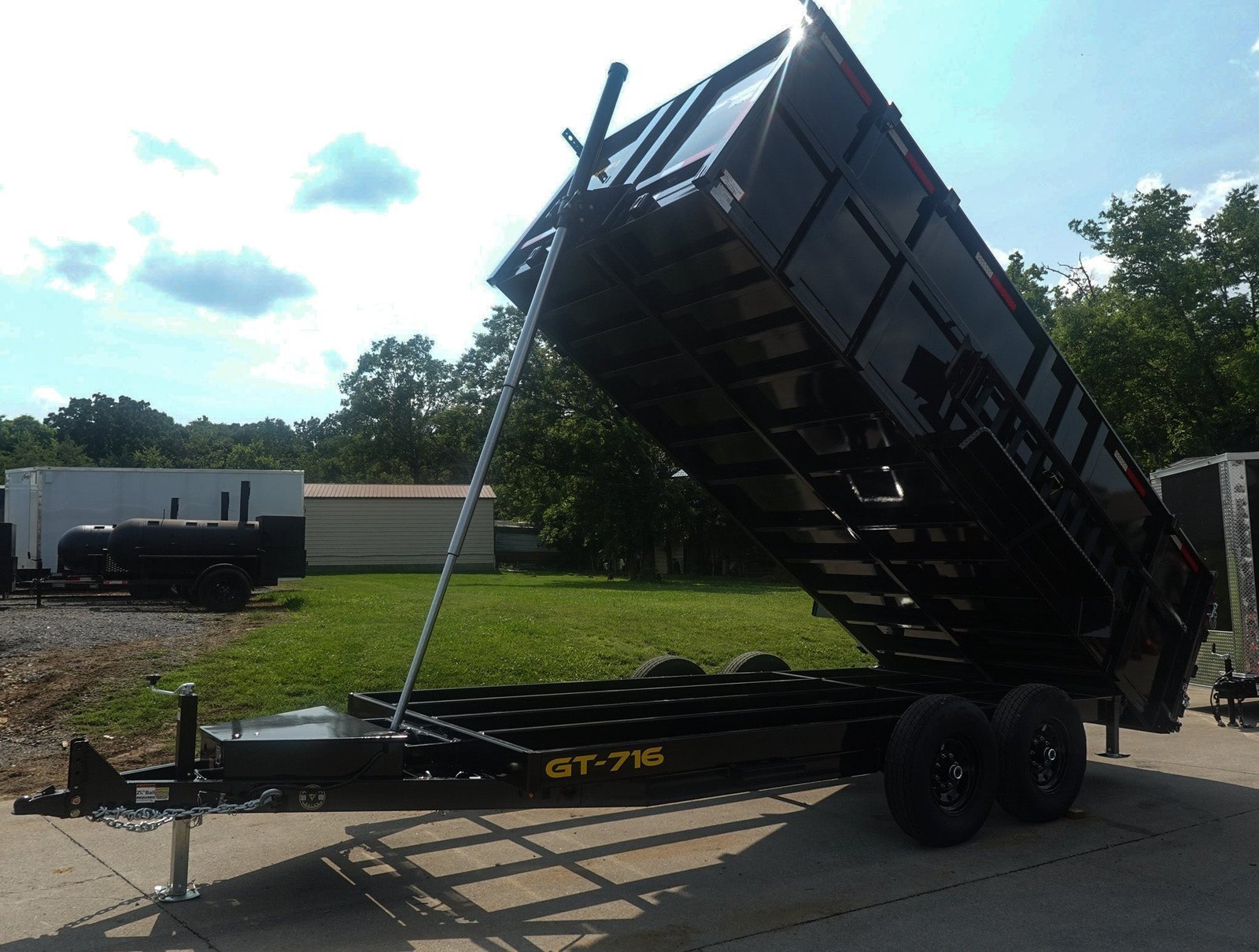

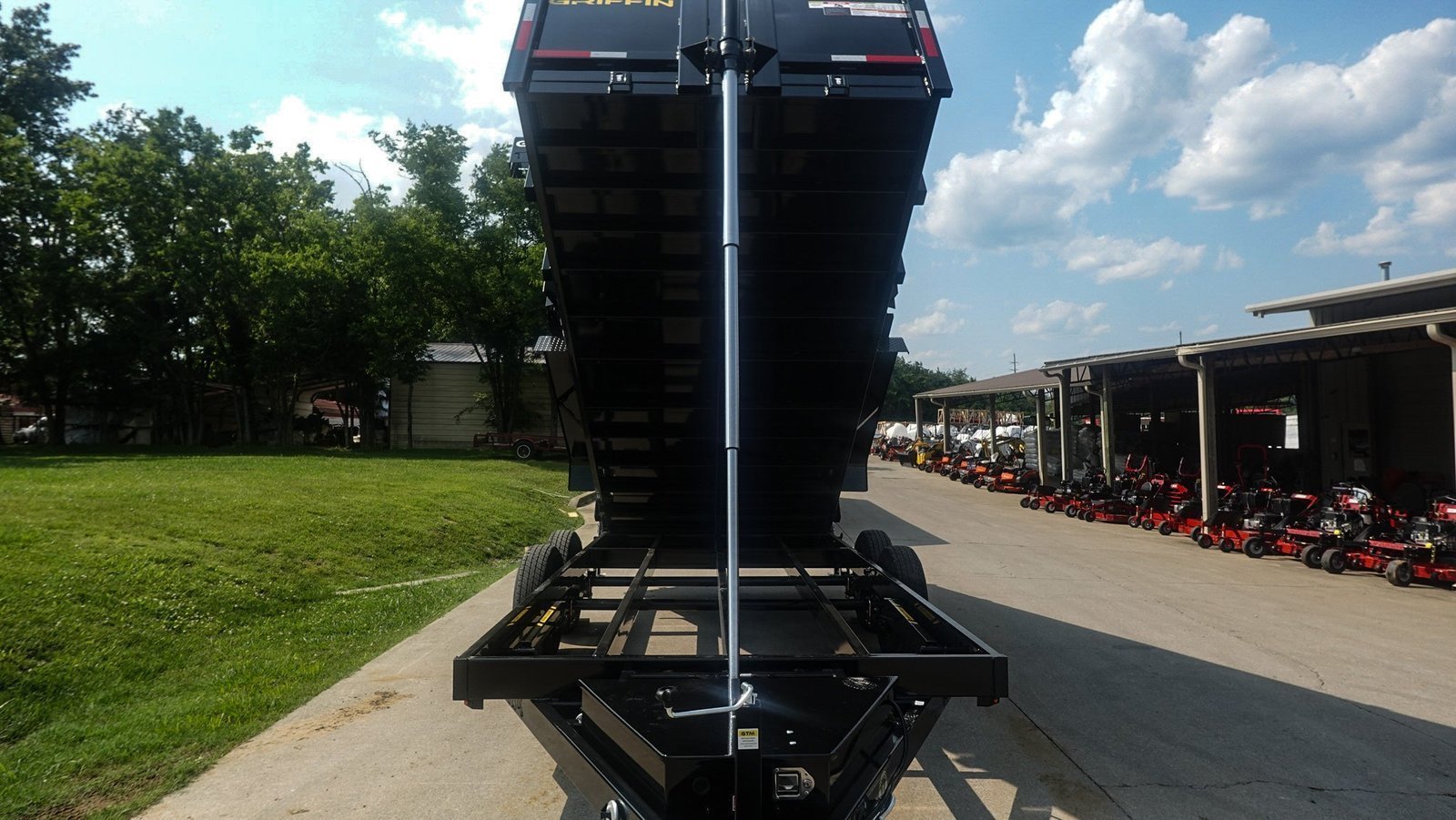

• The lift system is a 3-stage telescoping ram mechanism, allowing for efficient lifting capabilities.
• The gussets at the front and rear measure 2″ x 12″, providing additional strength and support for wall extensions.
• The floor and walls are made from 10-gauge smooth steel, ensuring durability and structural integrity.
• The safety chains are equipped with two forged slip hooks, measuring 5/16″ x 35″ and rated for a 11700lb capacity, ensuring secure towing.
• The integrated tarp system is tarp kit ready, allowing for easy installation and protection of the load.
• The trailer includes five 5000lb D-rings, which are welded into the floor for secure cargo tie-down options.

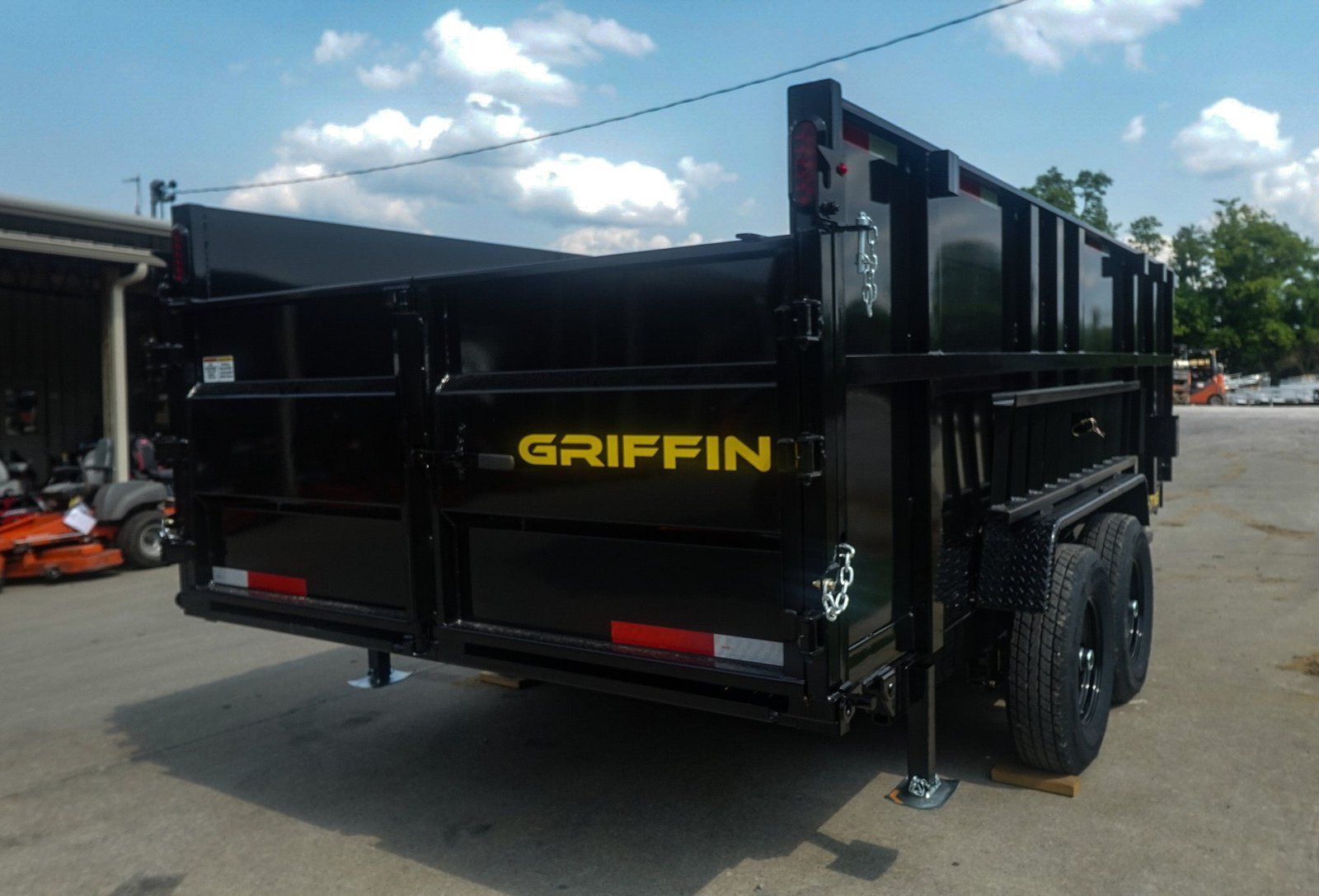

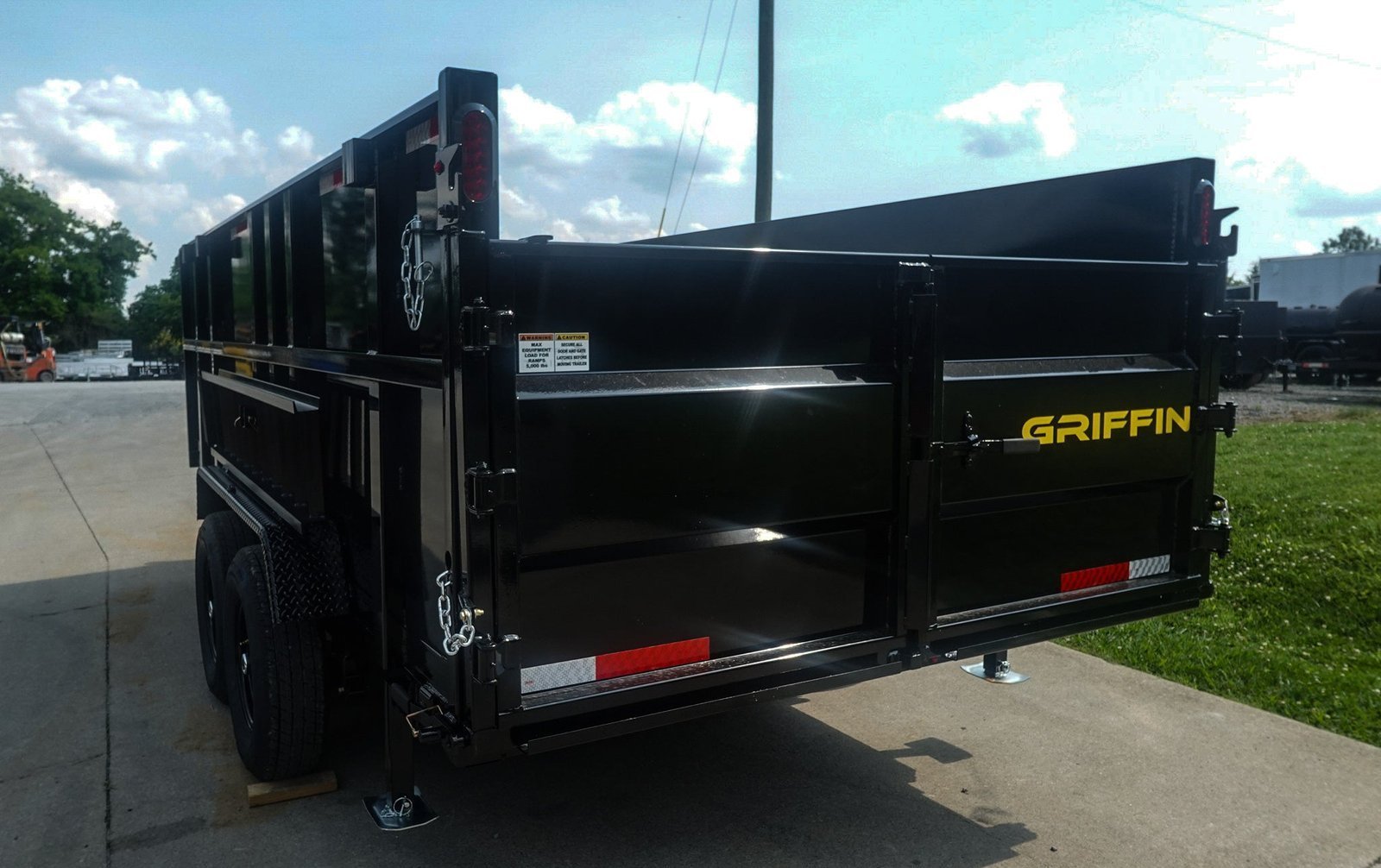

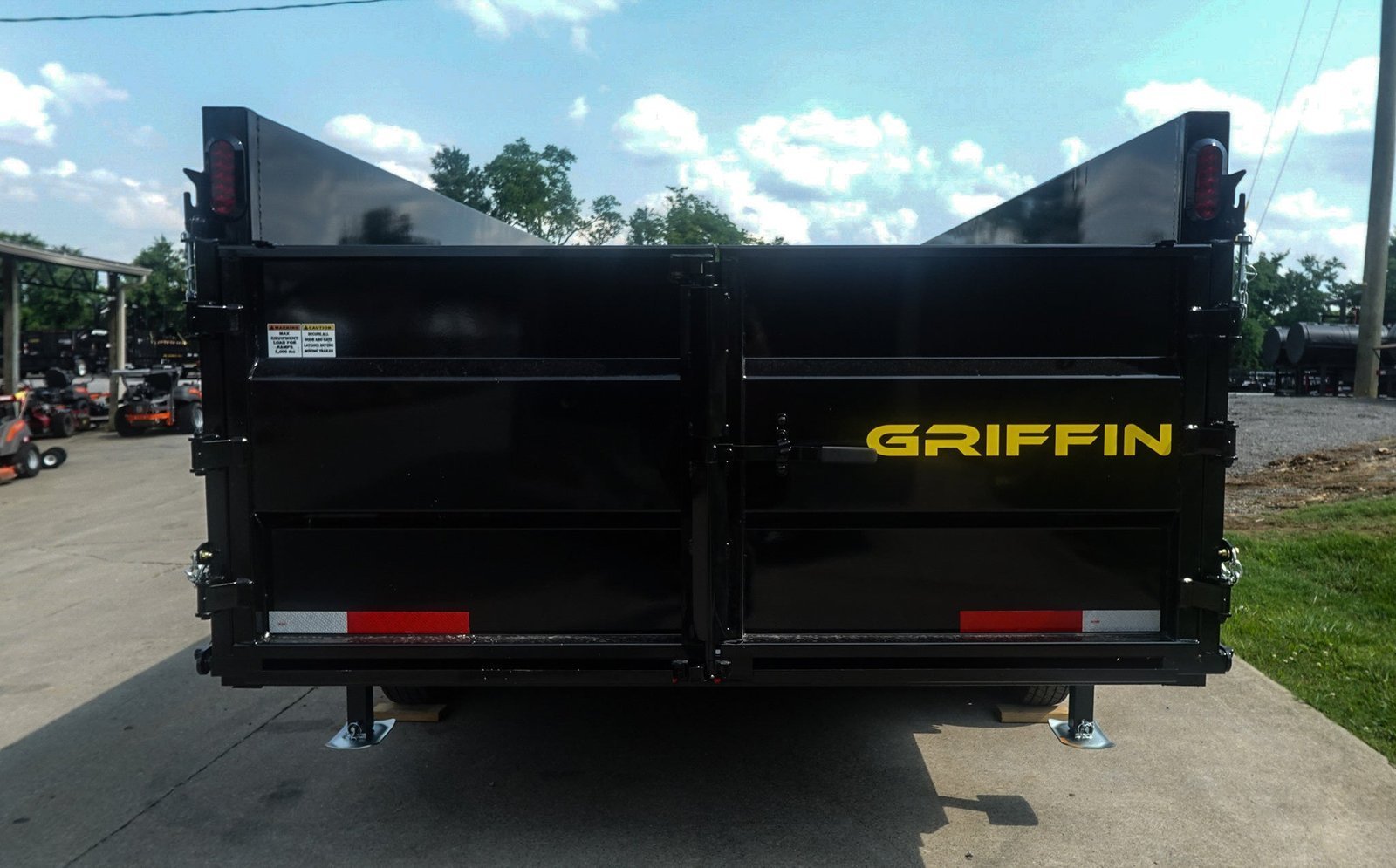

• The rear gate is a 2-way combination spreader/barn gate, providing flexibility in unloading materials.
• The axles are tandem EZ lube axles with galvanized components, offering durability and low maintenance.
• The paint finish is a high-gloss black powder coat, providing a protective layer and a sleek appearance.
• The suspension system features equalized leaf springs, ensuring a smooth ride even on rough terrain.

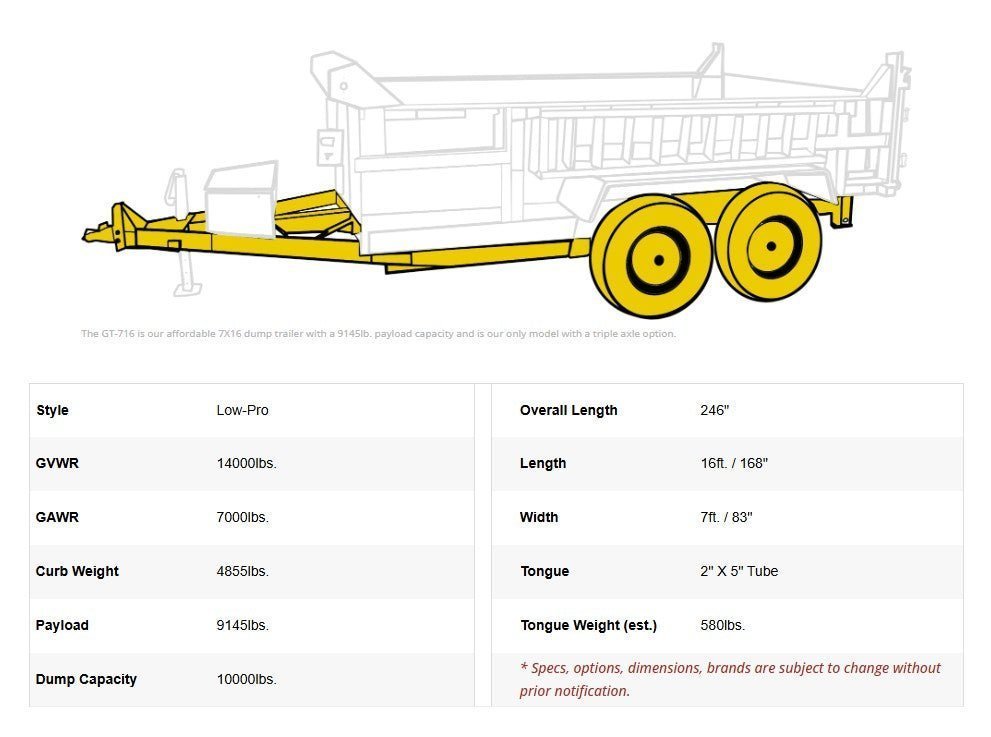

• The trailer style is Low-Pro, providing a lower center of gravity for improved stability during towing.
• The overall length of the trailer is 246 inches, making it ideal for transporting larger materials.
• The GVWR (Gross Vehicle Weight Rating) is 14,000 pounds, allowing for heavy loads without compromising safety.
• The curb weight of the trailer is 4855 pounds, providing a sturdy yet manageable weight for towing.
• The tongue is constructed from 2″ x 5″ tube steel, offering enhanced strength and durability.
• The payload capacity is 9145 pounds, enabling the transport of substantial amounts of materials.
• The estimated tongue weight is 580 pounds, contributing to the trailer’s overall stability during transport.
• The dump capacity is 10,000 pounds, making the trailer suitable for handling large and heavy dumping tasks.
• Rear Gate 2-Way Combination Spreader / Barn
