Name: 7&#215;14 Telescopic Hydraulic Dump Trailer with 3ft Sides (2) 7K Axles 14K GVWR
SKU: 7x14x3 CHUBBS TELE
Price: 9699.00 USD
Availability: InStock

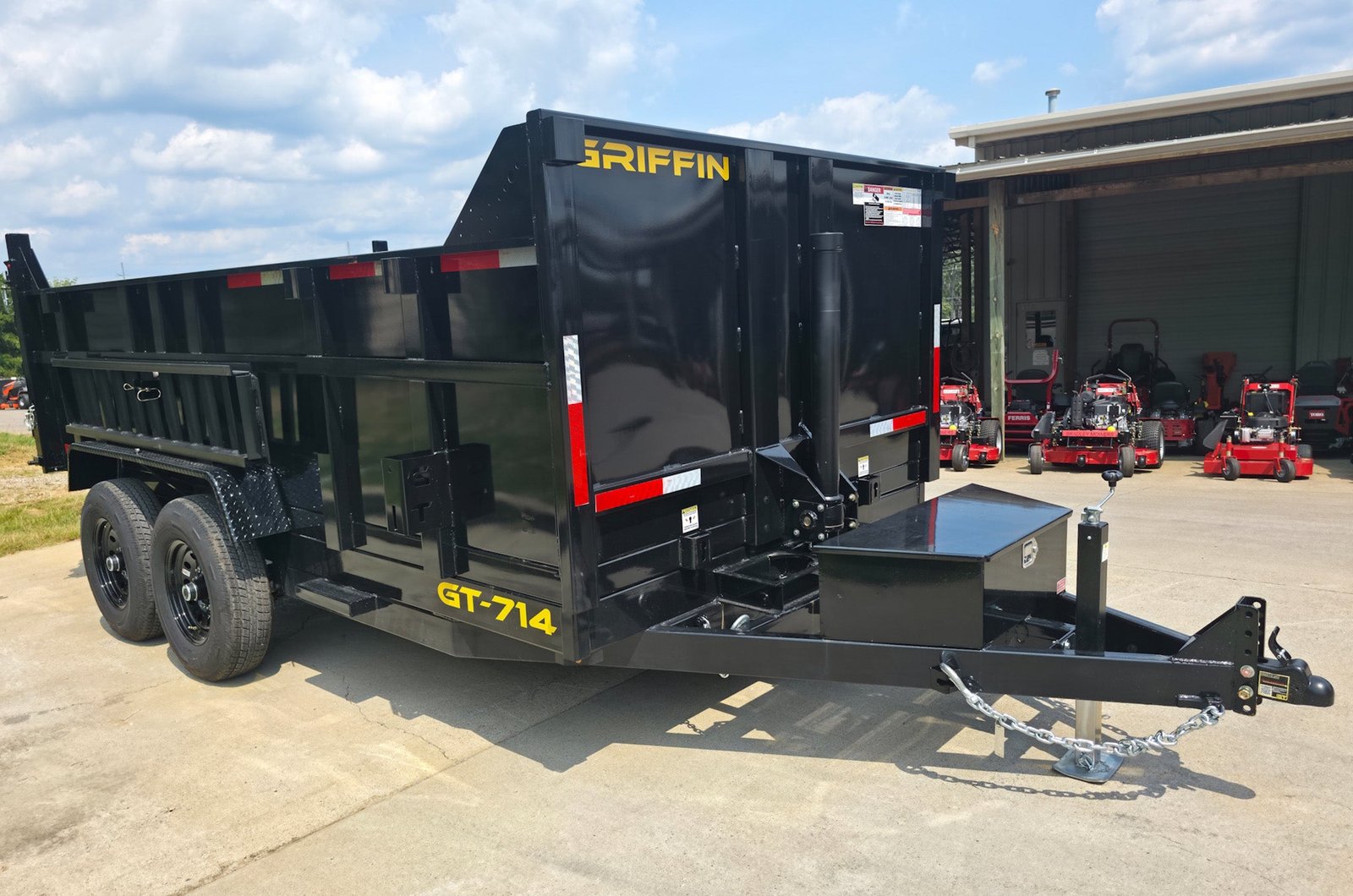

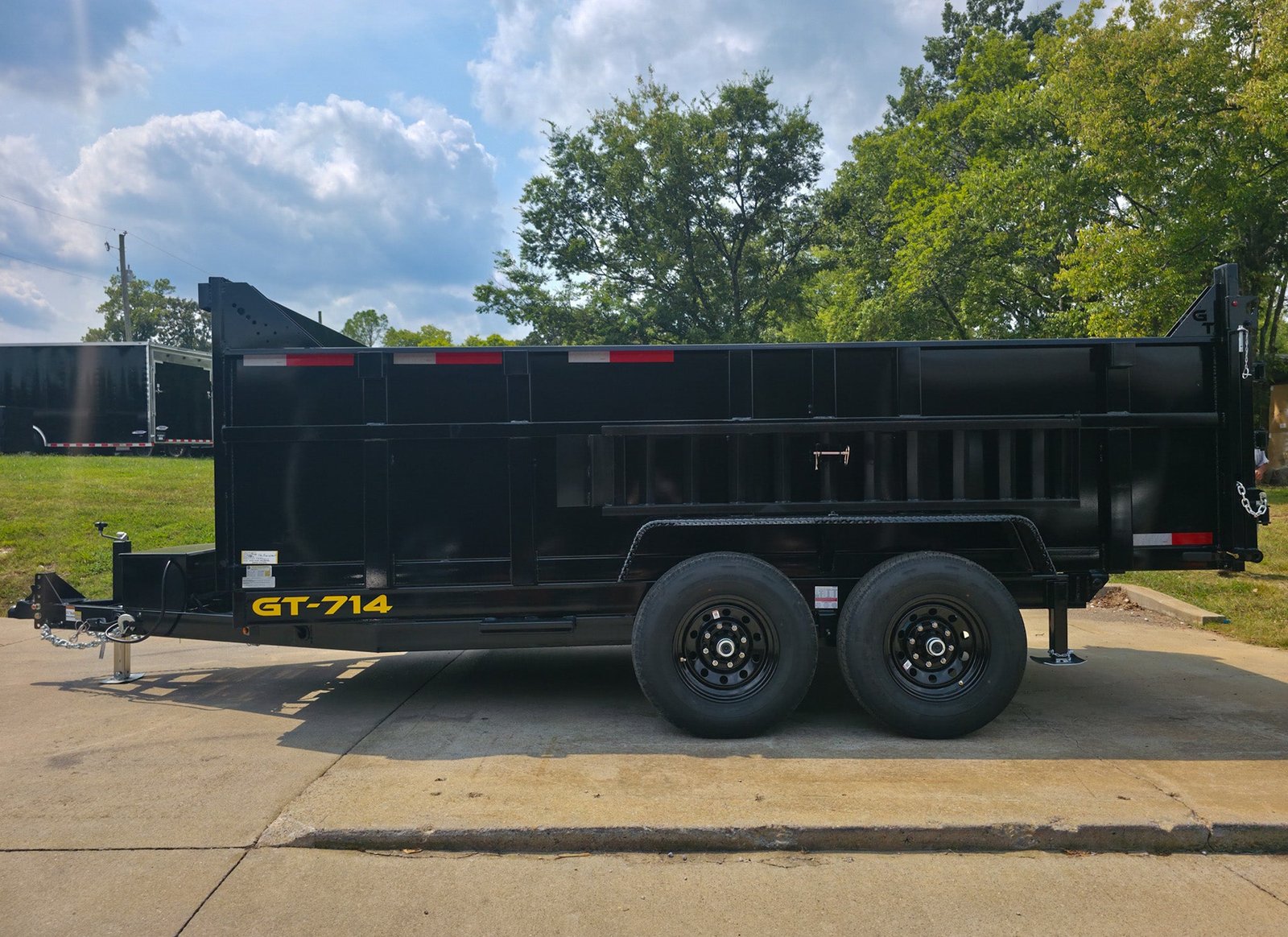

7×14 Telescopic Hydraulic Dump Trailer with 3ft Sides (2) 7K Axles 14K GVWR

The 7×14 Telescopic Hydraulic Dump Trailer is built for professionals who demand maximum lift power, capacity, and durability. Featuring a 3-stage telescopic lift, reinforced steel construction, and premium components, this trailer is made to handle the toughest hauling and dumping jobs with ease.

Features:

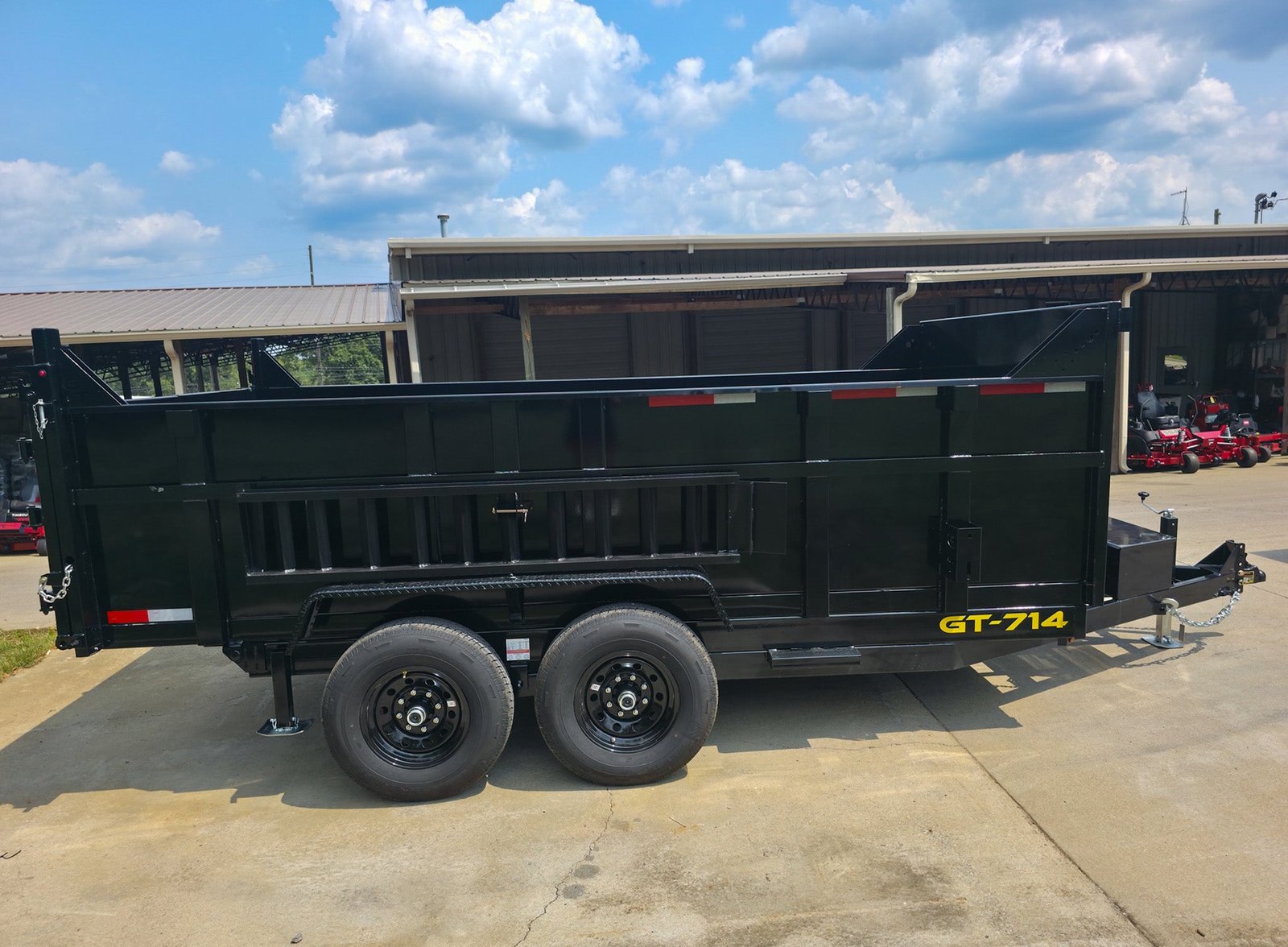

Heavy-Duty Construction: The 14-foot trailer features 36″ tall sidewalls and a 7-foot width for superior load volume. Built with 10-gauge smooth steel floor and walls, reinforced by 2″x3″ cross members spaced 16″ apart, it delivers unmatched structural integrity and long-term durability.

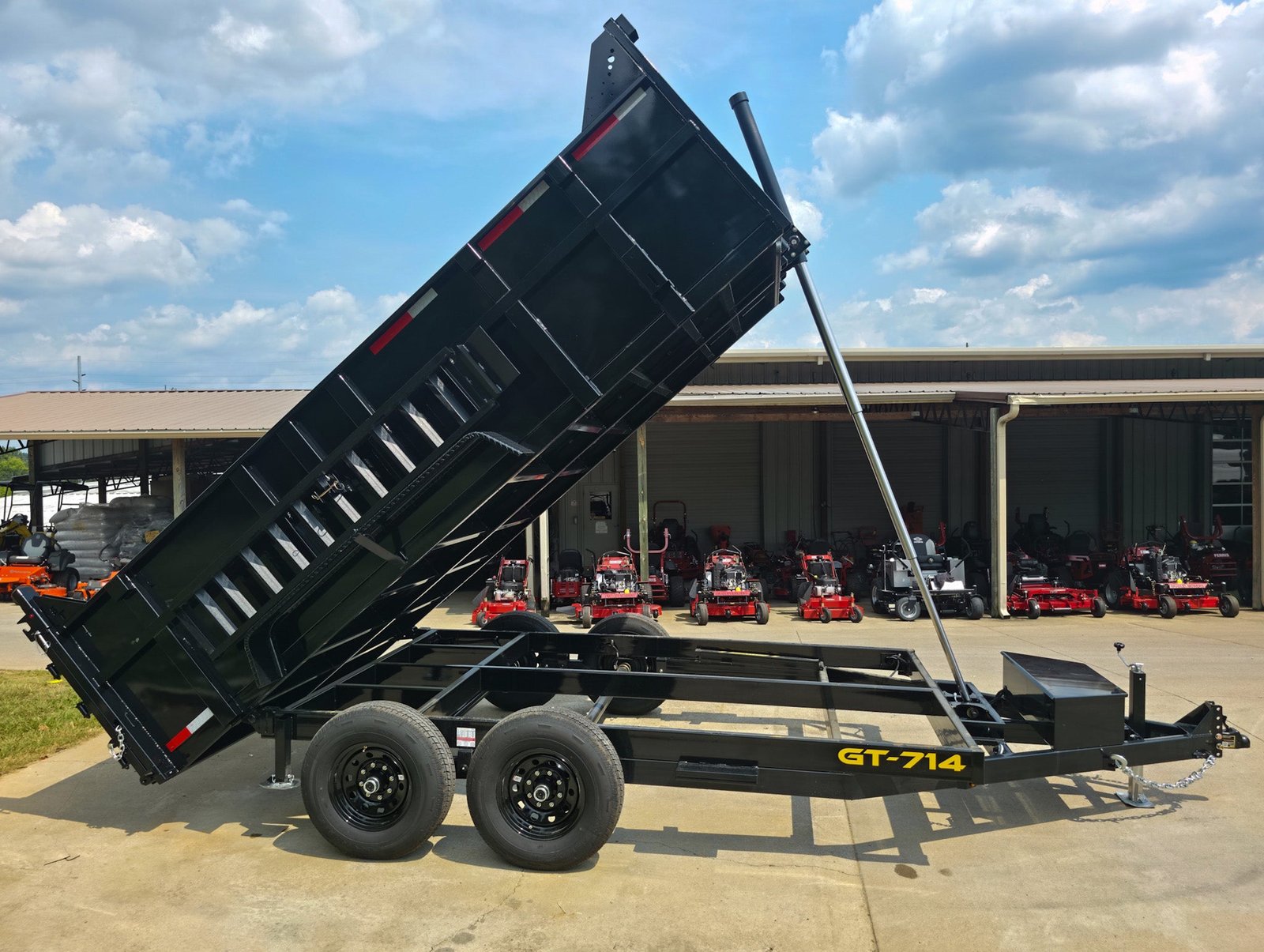

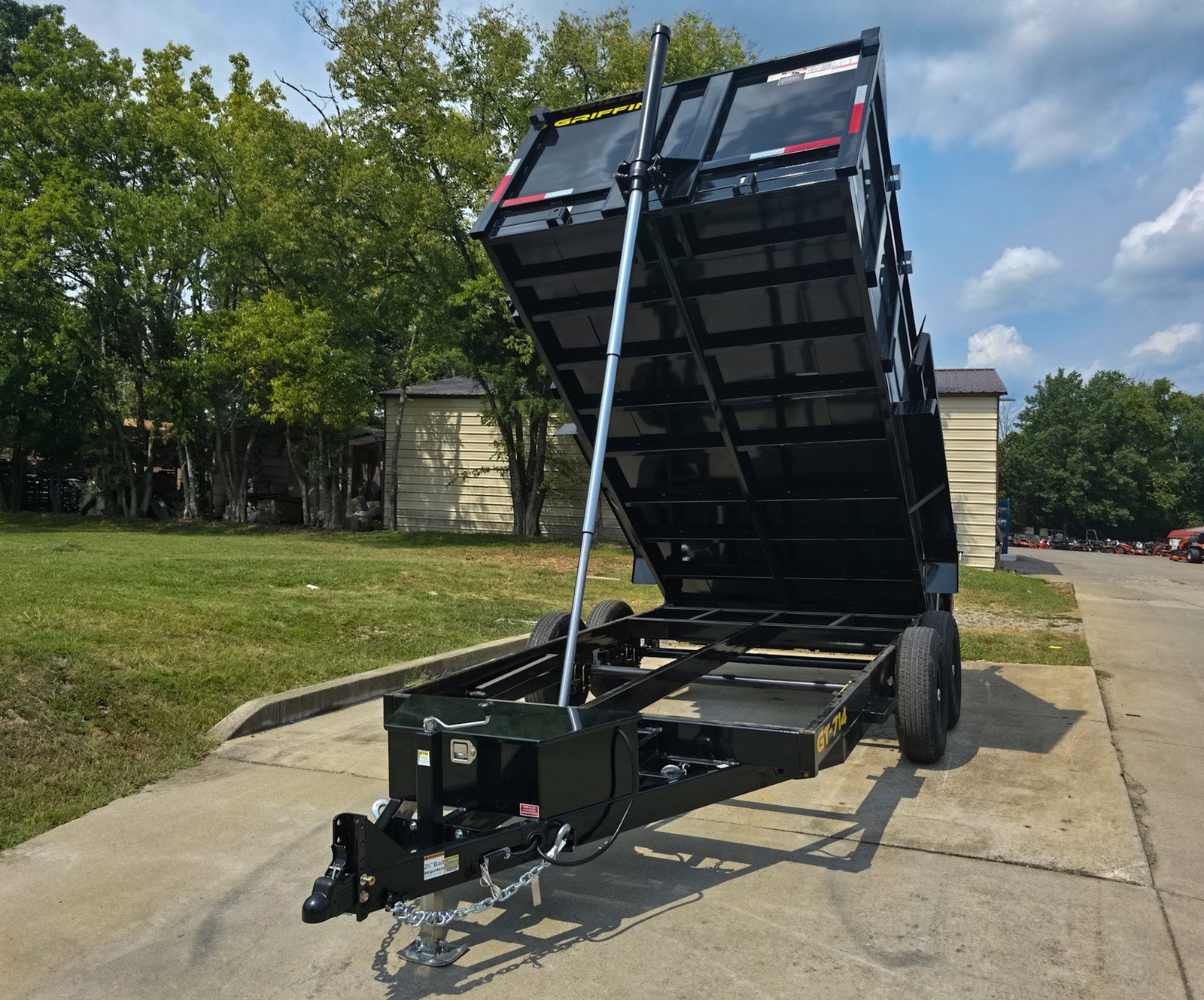

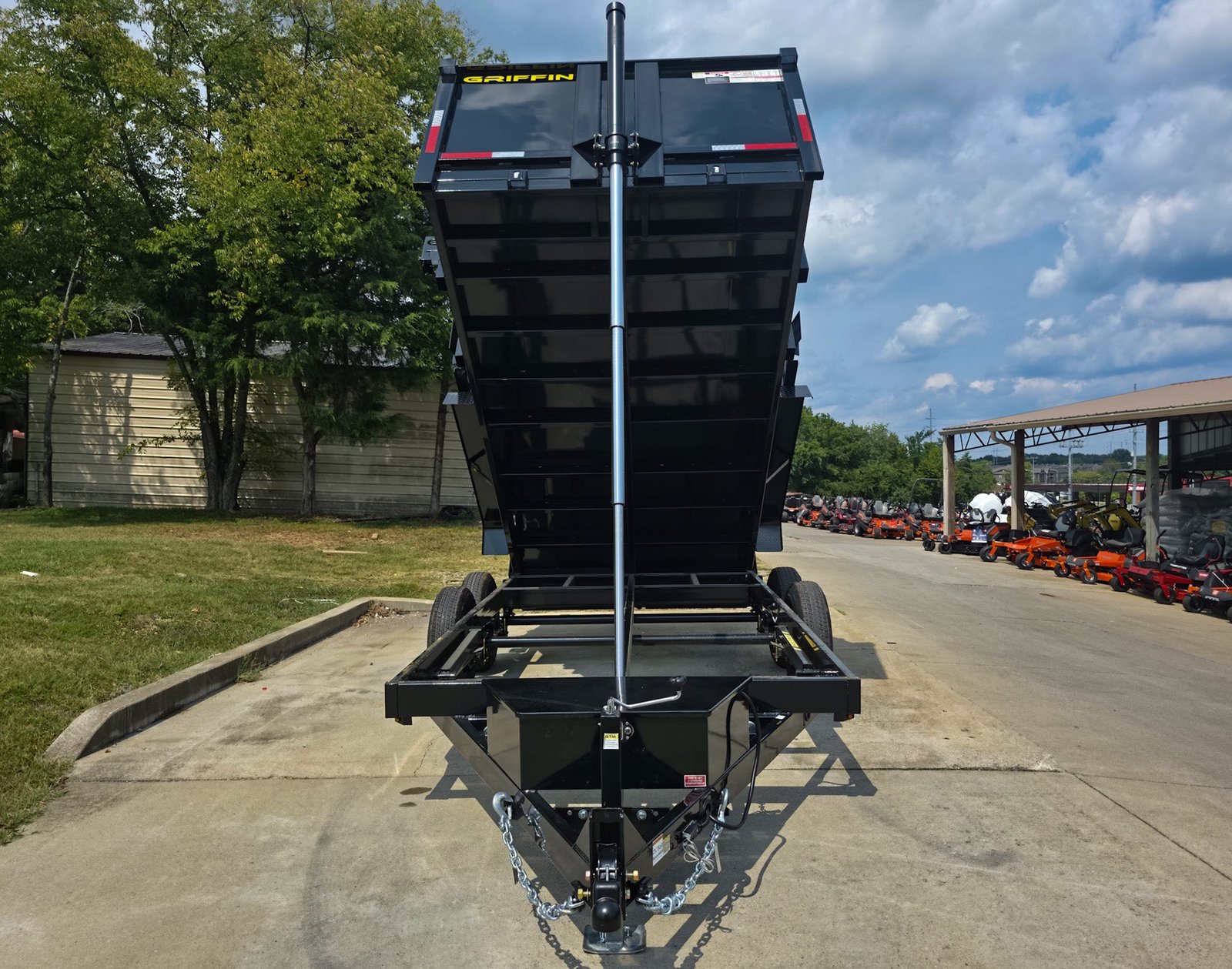

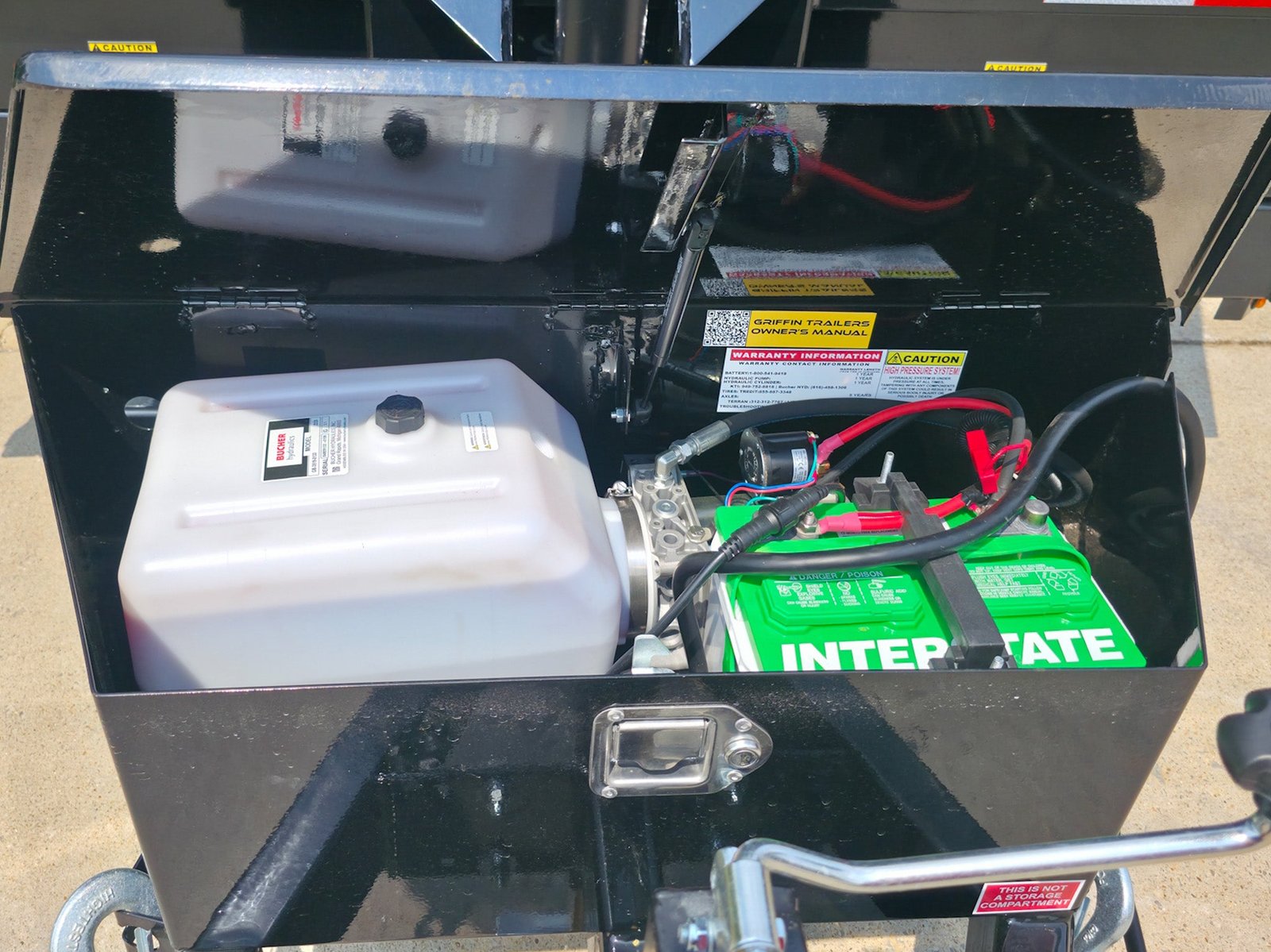

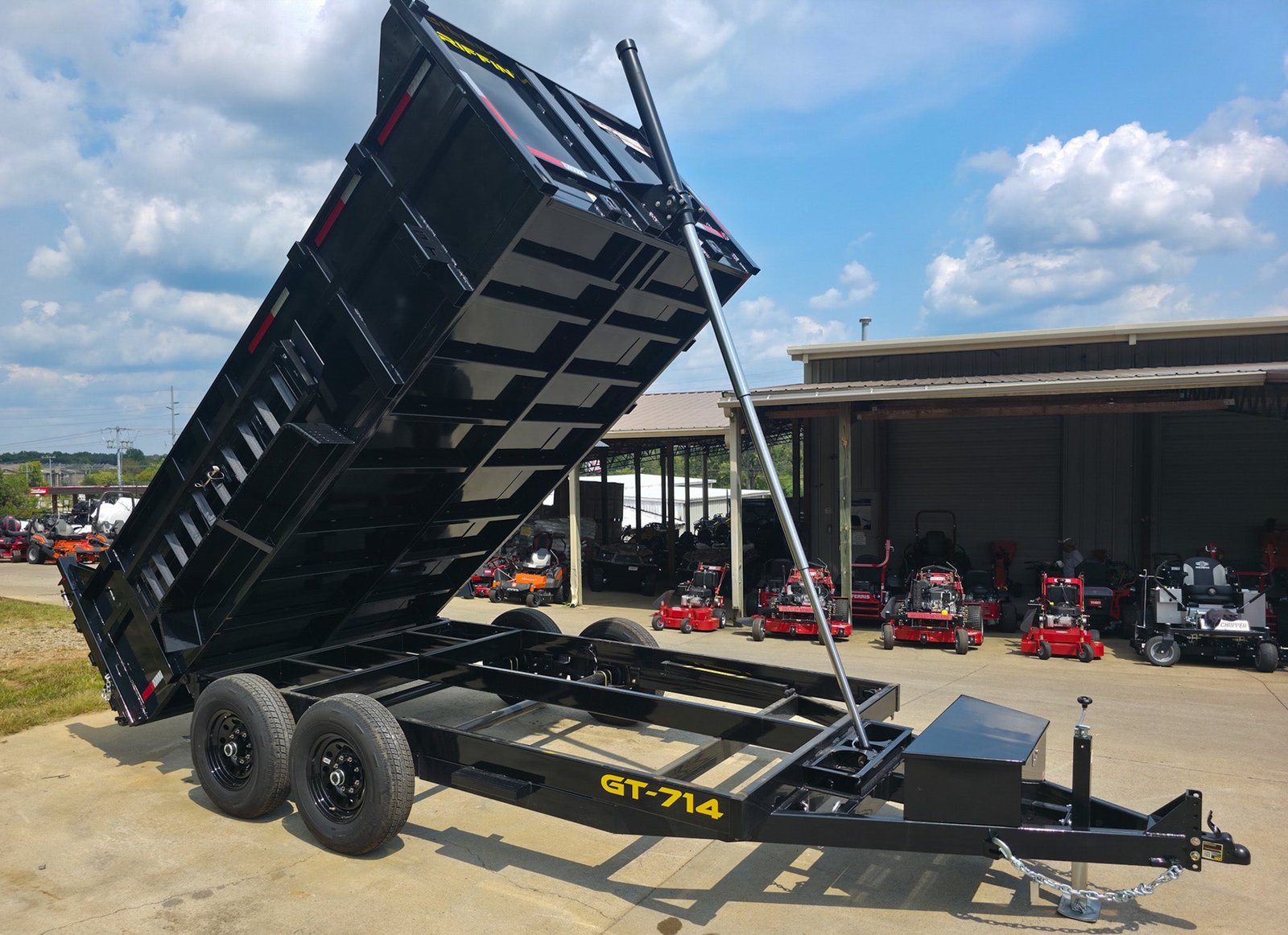

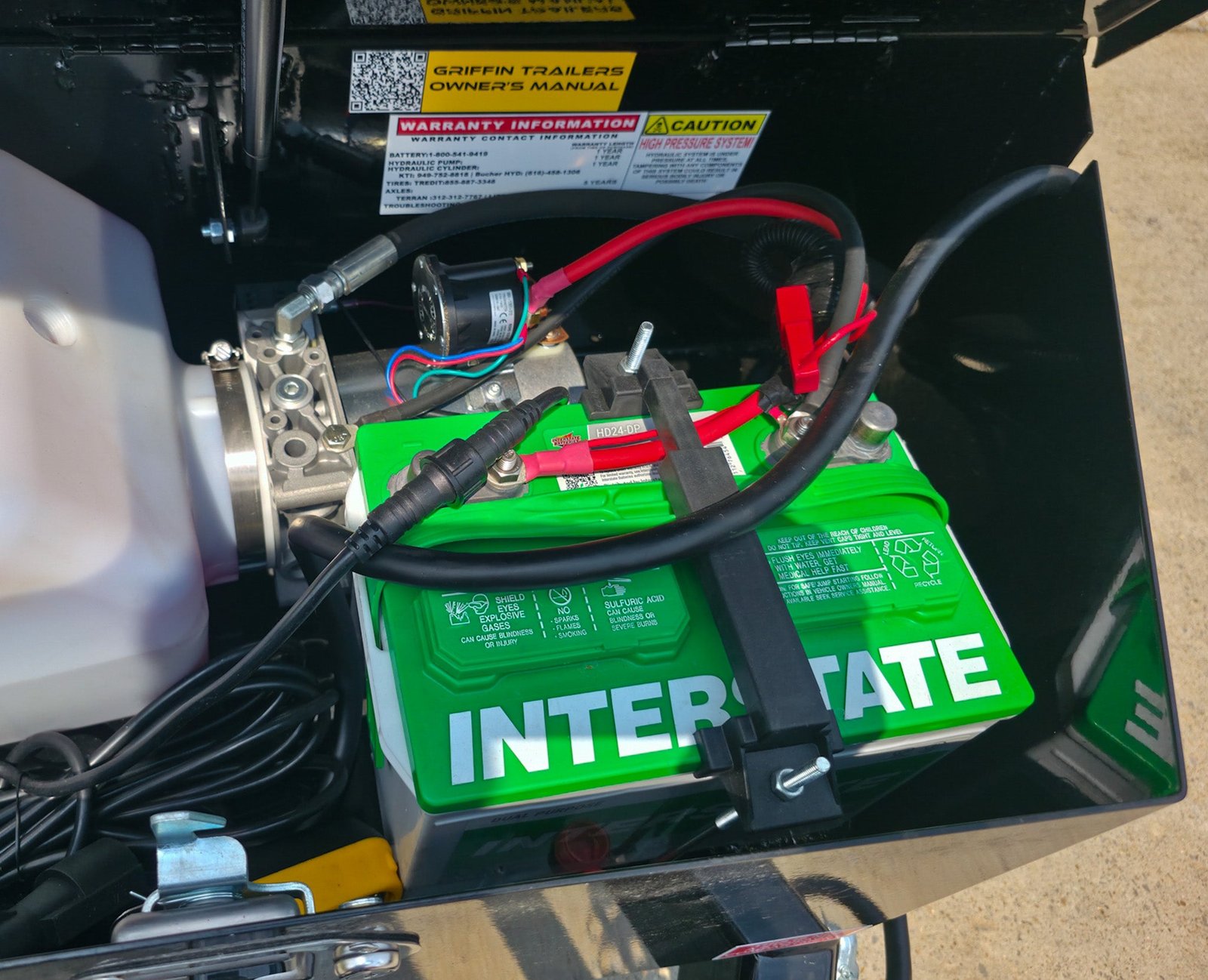

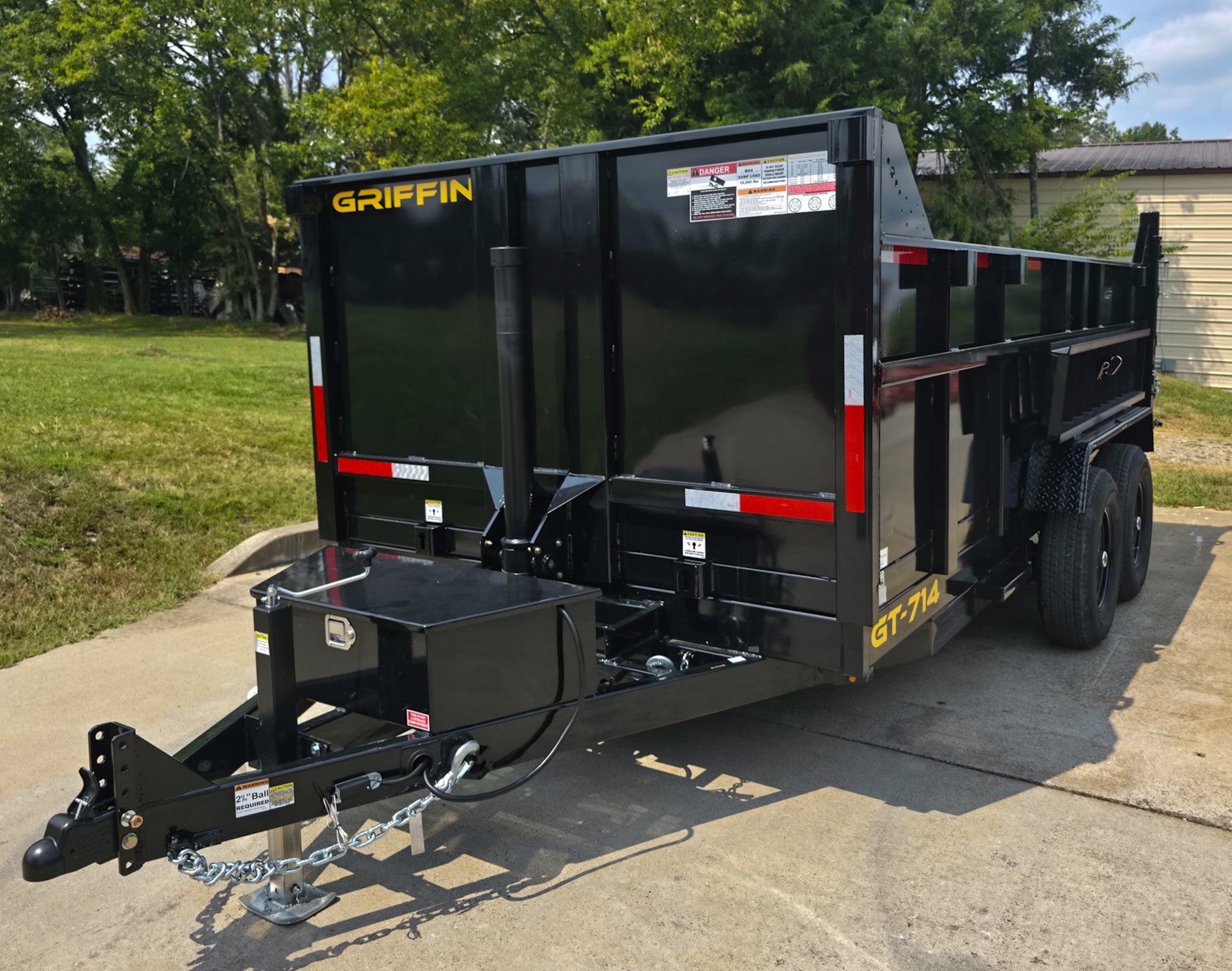

Powerful Telescopic Hydraulic System: Equipped with a 12V DC hydraulic pump producing 3,200 PSI (power up, gravity down), the 3-stage telescopic lift system provides a smooth and efficient dump action—capable of lifting up to 10,000 lbs. with ease.
Reliable Tandem Axles: Outfitted with (2) 7,000 lb. name-brand EZ Lube axles featuring galvanized components for longevity, equalized leaf spring suspension for a smoother ride, and electric brakes for dependable stopping power.

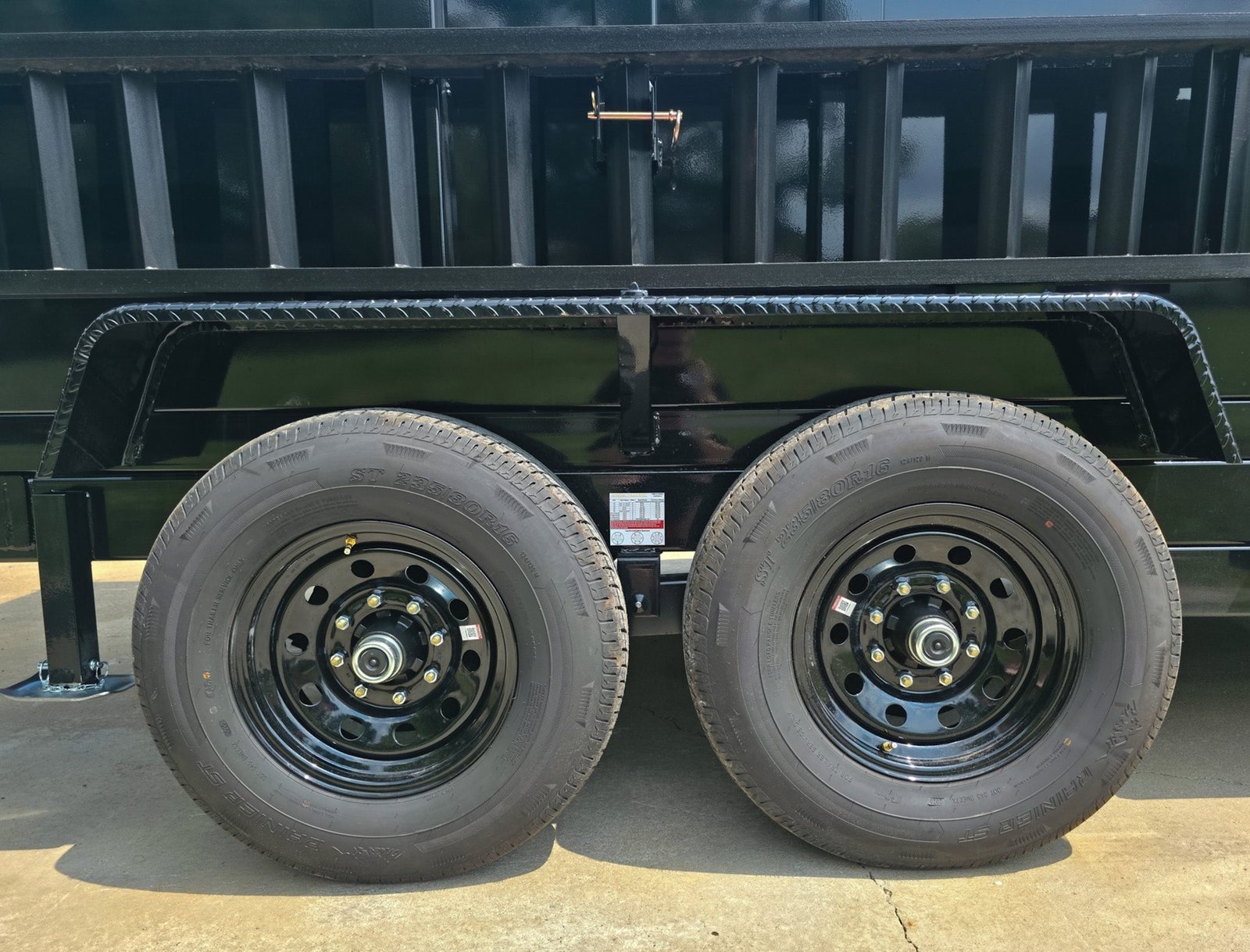

Premium Running Gear: Includes 16″ Kenda radial tires on black powder-coated wheels for durability, traction, and corrosion resistance.

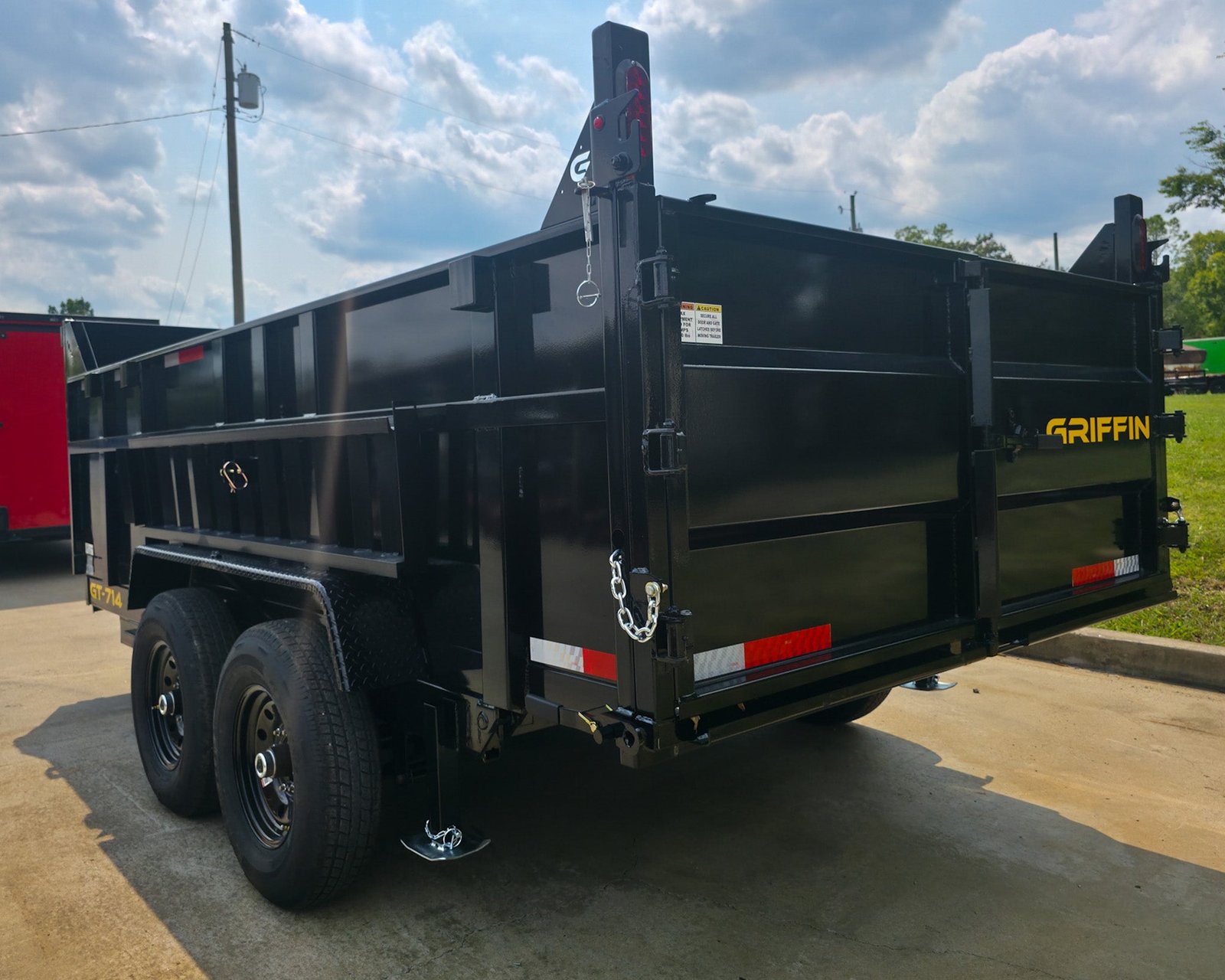

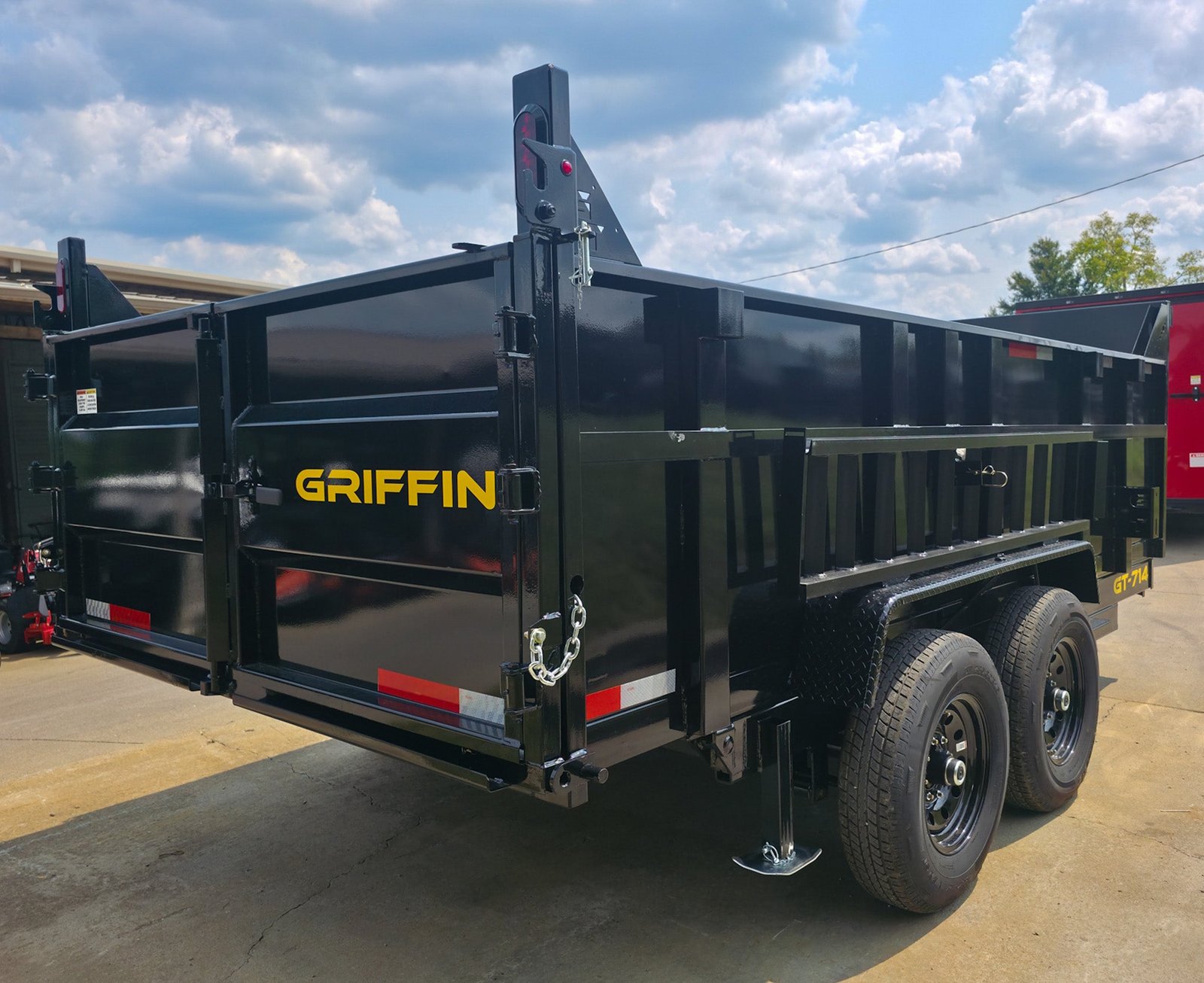

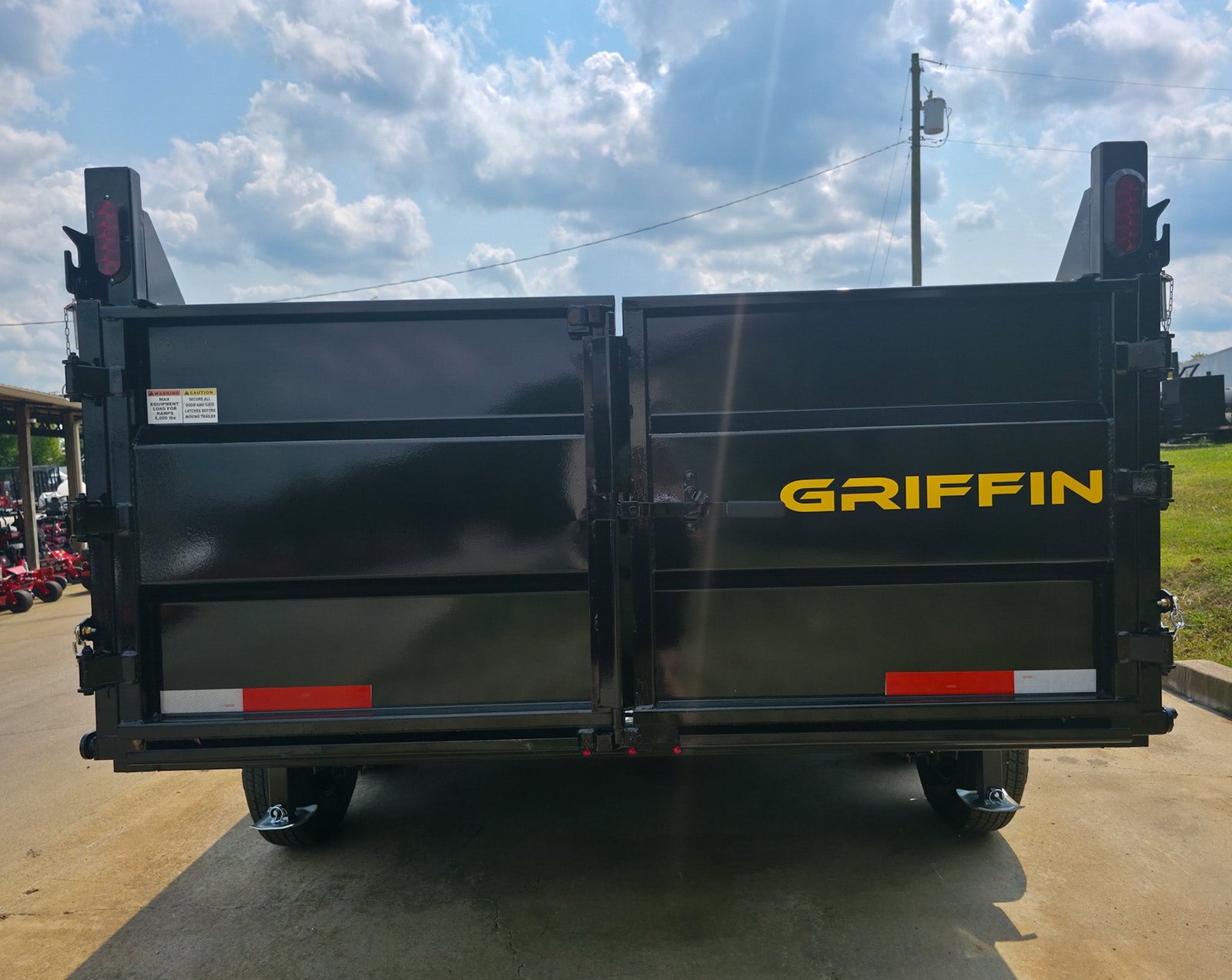

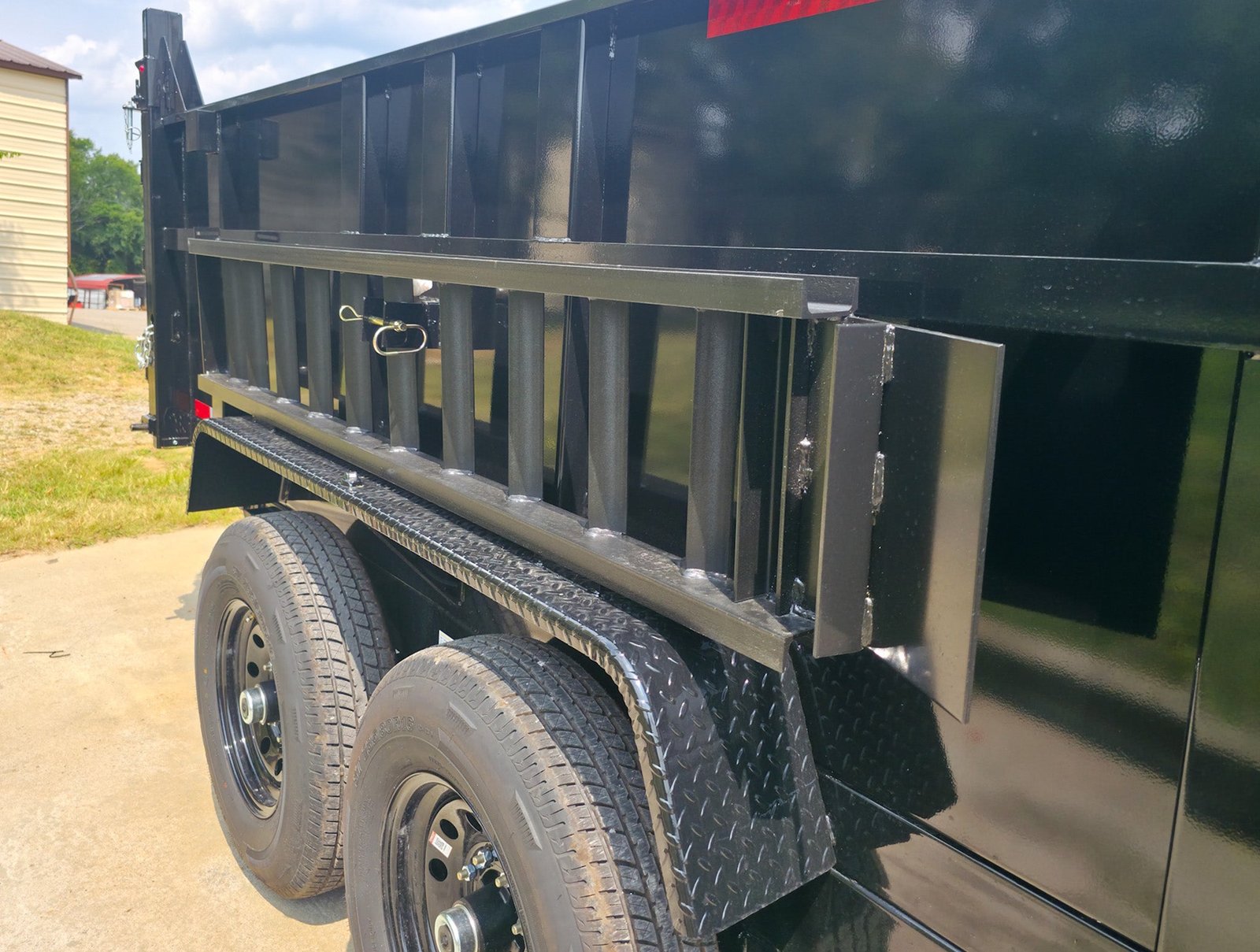

Convenient Loading & Operation: 80″ C-channel fender-mounted ramps make loading equipment effortless. A 2-way barn/spreader gate provides flexible unloading options, while a 7,000 lb. top-wind Ram jack allows easy trailer adjustment.
Smart Design & Utility Features:
- Five 5,000 lb. D-Rings: Welded into the floor for secure cargo tie-downs.

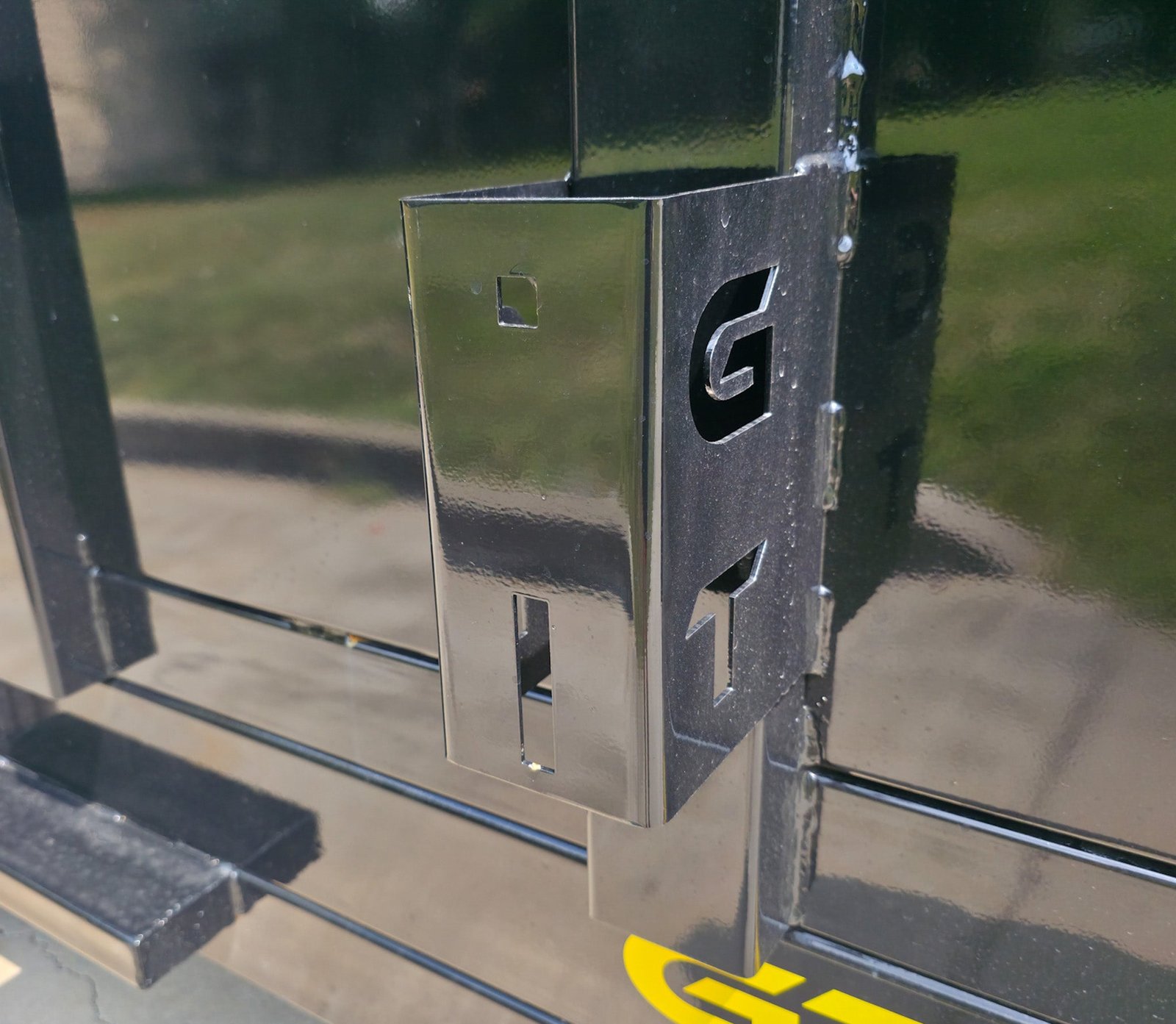

- Stake Pockets: 2″x4″ tubing provides multiple anchor points for flexible hauling.
- Diamond Plate Fenders: 14-gauge formed treadplate shields wheels and resists impact.
- Spare Tire Mount: Conveniently located for quick access.

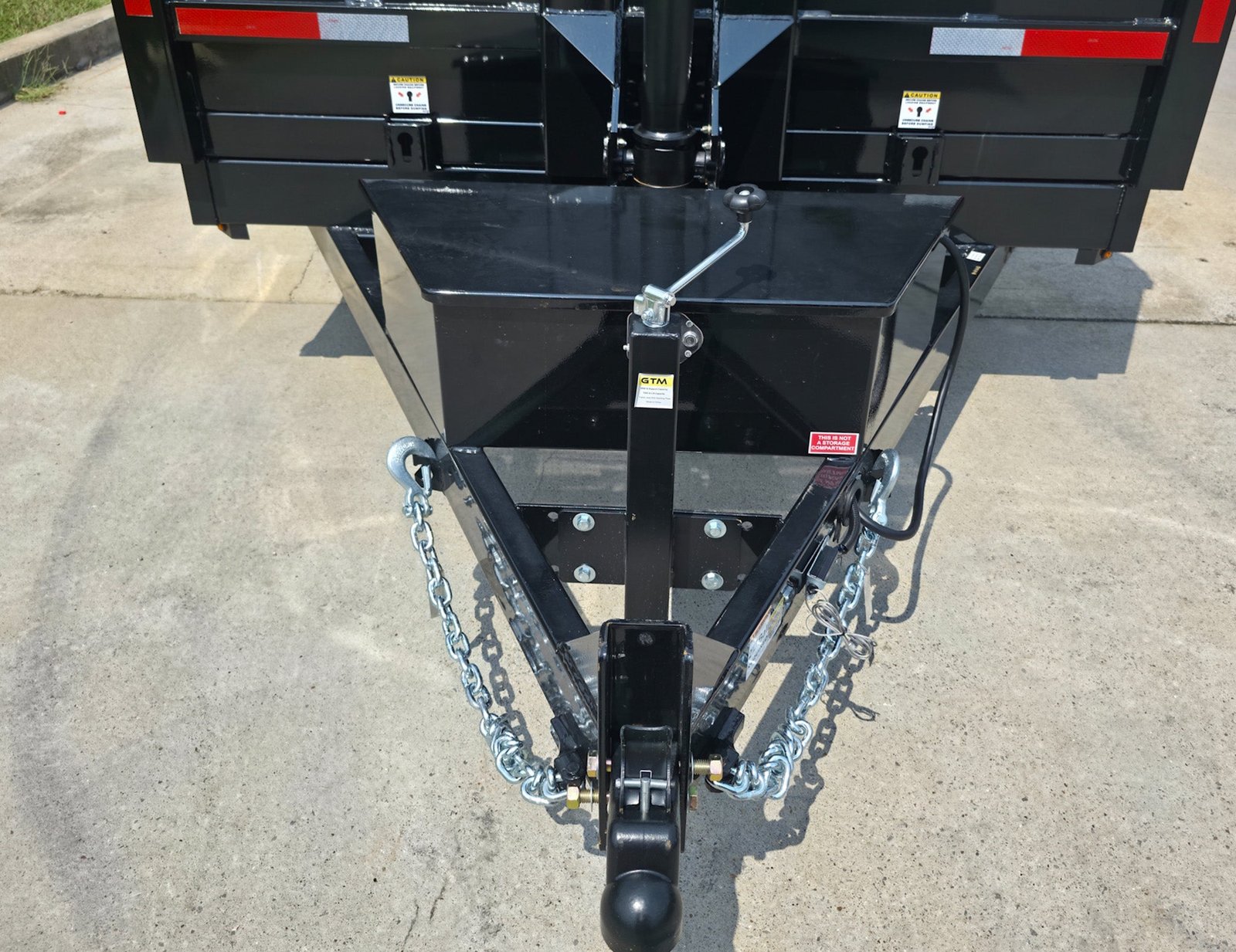

- Chain Box & 2-5/16″ Adjustable Ram Coupler: Enhance towing organization and flexibility.
Electrical & Lighting System: Fully wired Optronics LED amber/red lighting with a 7-pin round connector for safety and visibility. The plug-and-play 3-piece wiring harness simplifies maintenance and setup.
High-Performance Coating: Finished in Sherwin-Williams high-gloss black powder coat for corrosion resistance, chip protection, and a professional appearance.
Payload & Capacity:
- GVWR: 14,000 lbs.
- Payload: 10,096 lbs.
- Dump Capacity: 10,000 lbs.
- Curb Weight: 3,904 lbs.
- Tongue Weight: 580 lbs.
Low-Pro Design: With a floor height of 29″ and a Ram coupler height of 18″, the Low-Pro profile provides superior stability, easier loading, and a lower center of gravity for enhanced towing control.
